  • 1.  2930F layer 3 bundle interfaces

    Posted Sep 13, 2019 08:49 AM

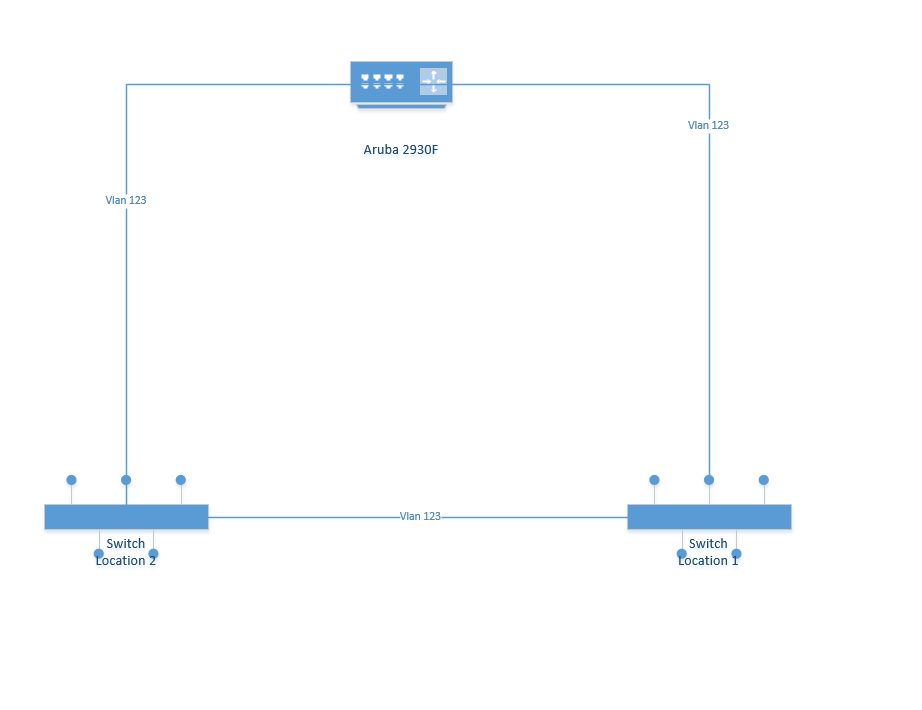

    Hi.  I have fibre connection from location 1 and location 2 to 3rd site connected to a 2930F to make the ring complete. STP is not an option. Is it possible for the 2930f to present two interfaces as one single layer 3 interface?Skjermbilde.PNG



  • 2.  RE: 2930F layer 3 bundle interfaces

    Posted Sep 13, 2019 06:57 PM
    No, routed interface is not supported...if both interfaces of Aruba 2930F are tagged/untagged members of VLAN 123...if (R)STP is not an option in your topology...if what I see is a real physical ring (involving three switcheds) and a logical ring (involving VLAN 123)...then - I'm afraid - you're going to have an hard networking loop and, consequently, a nasty broadcast storm to deal with (and no STP saving your day...).
