    hello guys ,

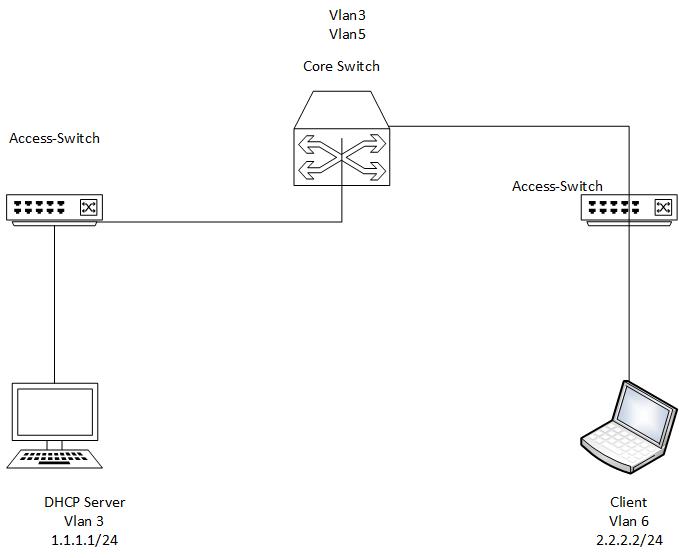

    i'm now need to make ACL with vlan 6 with ip 2.2.2.2/24
    connected with DHCP server vlan 1.1.1.1/24
    i'm doing this
    interface 1/1/1
    no shutdown
    no routing
    vlan trunk allowed 3,6

    interface 1/1/2
    no shutdown
    no routing
    vlan trunk allowed 3,6

    at the right access only allowed vlan 6

    at left  one allowed vlan 3

    the vlan 6 can access all servers and service at vlan 6

    need to make it only allowed service ports for DHCP, Active Directory ,etc

    how i can make this configuration

    ------------------------------
    Ahmed Fares
    ------------------------------


  • 2.  RE: ACL at CX 8320

    Posted Oct 29, 2021 02:37 AM
    Edited by TA18 Oct 29, 2021 02:39 AM
    Hi Ahmed,

    you can use something similar as to create an ACL:

    ​8320(config)# access-list ip TEST-ACL
    8320(config-acl-ip)# permit udp any any eq dhcp-client    (allows communication on udp port 68)
    8320(config-acl-ip)# permit udp any any eq dhcp-server  (allows communication on udp port 67)
    This will do it for the DHCP ports, for AD i saw the following port numbers on a Microsoft web page:
    Client Ports Server Port
    1024-65535/TCP 1723/TCP

    https://docs.microsoft.com/en-us/troubleshoot/windows-server/identity/config-firewall-for-ad-domains-and-trusts

    These port numbers can be allowed with the following commands:
    8320(config-acl-ip)# permit tcp any any gt 1024     (gt means any port number greater than 1024)
    8320(config-acl-ip)# permit tcp any any lt 65535    (lt means any port number less than 65535)
    (You can however not take these port numbers for granted, but double check which client port numbers are used or not used in your AD implementation)
    Also keep in mind that anything else that you do not allow explicitly will be blocked. I'm not sure what other services you mean by "etc.", but you can check if they use TCP or UDP and their respective port number and you can allow them with commands similar like the ones above. Also you can replace the "any any" keywords for the respective source and destination IP addresses in your topology. I used any any to avoid any misunderstandings, because I didn't quite understand the IP addressing in your topology.

    Also here is the OS-CX ACL Guide:
    https://www.arubanetworks.com/techdocs/AOS-CX/10.08/PDF/acls_832x.pdf

    Hope this helps.




    ------------------------------
    ------------------------------
    Toni Andreev
    ------------------------------
    ------------------------------
