Wireless Access

Hi ,

The majority of the AP's we are currently running are the 315's and I noticed today that the Max Speed users are getting on 5 GHz is 400 Mbps. The documentation for the 315's states I should be getting up to 1,733 Mbps. Is there something I have configured wrong? We run Microsoft Surface Laptops for the most part with IT using Dell's. It's the same across the board though.

Thanks,

Brandon

You may be seeing the speed reported for a 2 spatial stream device on a 40mhz wide channel. The "marketing speed" is a theoretical maximum. You never really see speeds like that out on the real world. See this chart for expected speed with certain combinations of RSSI/SNR (Will dictate the modulation and coding), Channel Width, and Spatial Streams: https://mcsindex.com/

------------------------------
Dustin Burns

Lead Mobility Engineer @Worldcom Exchange, Inc.

ACCX 1271| ACMX 509| ACSP | ACDA | MVP Guru 2022
If my post was useful accept solution and/or give kudos
------------------------------

So this is normal to see regardless of the AP type?



Original Message:
Sent: Jun 21, 2022 04:02 PM
From: Dustin Burns
Subject: AP 315's Max Speed

You may be seeing the speed reported for a 2 spatial stream device on a 40mhz wide channel. The "marketing speed" is a theoretical maximum. You never really see speeds like that out on the real world. See this chart for expected speed with certain combinations of RSSI/SNR (Will dictate the modulation and coding), Channel Width, and Spatial Streams: https://mcsindex.com/

------------------------------
Dustin Burns

Lead Mobility Engineer @Worldcom Exchange, Inc.

ACCX 1271| ACMX 509| ACSP | ACDA | MVP Guru 2022
If my post was useful accept solution and/or give kudos
------------------------------

Yes this would be a clients max speed capable on a 2 spatial stream device using a 40mhz channel with an MCS of 9. Client capabilities are shared with the Aruba APs and this is how the system calculates that value.

------------------------------
Dustin Burns

Lead Mobility Engineer @Worldcom Exchange, Inc.

ACCX 1271| ACMX 509| ACSP | ACDA | MVP Guru 2022
If my post was useful accept solution and/or give kudos
------------------------------

Original Message:
Sent: Jun 21, 2022 04:21 PM
From: Brandon Gregrich
Subject: AP 315's Max Speed

So this is normal to see regardless of the AP type?




Original Message:
Sent: Jun 21, 2022 04:02 PM
From: Dustin Burns
Subject: AP 315's Max Speed

You may be seeing the speed reported for a 2 spatial stream device on a 40mhz wide channel. The "marketing speed" is a theoretical maximum. You never really see speeds like that out on the real world. See this chart for expected speed with certain combinations of RSSI/SNR (Will dictate the modulation and coding), Channel Width, and Spatial Streams: https://mcsindex.com/

------------------------------
Dustin Burns

Lead Mobility Engineer @Worldcom Exchange, Inc.

ACCX 1271| ACMX 509| ACSP | ACDA | MVP Guru 2022
If my post was useful accept solution and/or give kudos

FYI also you would need to get the same MCS on 2spatial streams with a 160mhz wide channel to get to the 1.7 Gbps



------------------------------
Dustin Burns

Lead Mobility Engineer @Worldcom Exchange, Inc.

ACCX 1271| ACMX 509| ACSP | ACDA | MVP Guru 2022
If my post was useful accept solution and/or give kudos
------------------------------

Original Message:
Sent: Jun 21, 2022 04:21 PM
From: Brandon Gregrich
Subject: AP 315's Max Speed

So this is normal to see regardless of the AP type?




Original Message:
Sent: Jun 21, 2022 04:02 PM
From: Dustin Burns
Subject: AP 315's Max Speed

You may be seeing the speed reported for a 2 spatial stream device on a 40mhz wide channel. The "marketing speed" is a theoretical maximum. You never really see speeds like that out on the real world. See this chart for expected speed with certain combinations of RSSI/SNR (Will dictate the modulation and coding), Channel Width, and Spatial Streams: https://mcsindex.com/

------------------------------
Dustin Burns

Lead Mobility Engineer @Worldcom Exchange, Inc.

ACCX 1271| ACMX 509| ACSP | ACDA | MVP Guru 2022
If my post was useful accept solution and/or give kudos

Interesting, my you provide one table for AX as well ?

Original Message:
Sent: Jun 21, 2022 04:25 PM
From: Dustin Burns
Subject: AP 315's Max Speed

FYI also you would need to get the same MCS on 2spatial streams with a 160mhz wide channel to get to the 1.7 Gbps



------------------------------
Dustin Burns

Lead Mobility Engineer @Worldcom Exchange, Inc.

ACCX 1271| ACMX 509| ACSP | ACDA | MVP Guru 2022
If my post was useful accept solution and/or give kudos
------------------------------


Original Message:
Sent: Jun 21, 2022 04:21 PM
From: Brandon Gregrich
Subject: AP 315's Max Speed

So this is normal to see regardless of the AP type?




Original Message:
Sent: Jun 21, 2022 04:02 PM
From: Dustin Burns
Subject: AP 315's Max Speed

You may be seeing the speed reported for a 2 spatial stream device on a 40mhz wide channel. The "marketing speed" is a theoretical maximum. You never really see speeds like that out on the real world. See this chart for expected speed with certain combinations of RSSI/SNR (Will dictate the modulation and coding), Channel Width, and Spatial Streams: https://mcsindex.com/

------------------------------
Dustin Burns

Lead Mobility Engineer @Worldcom Exchange, Inc.

ACCX 1271| ACMX 509| ACSP | ACDA | MVP Guru 2022
If my post was useful accept solution and/or give kudos

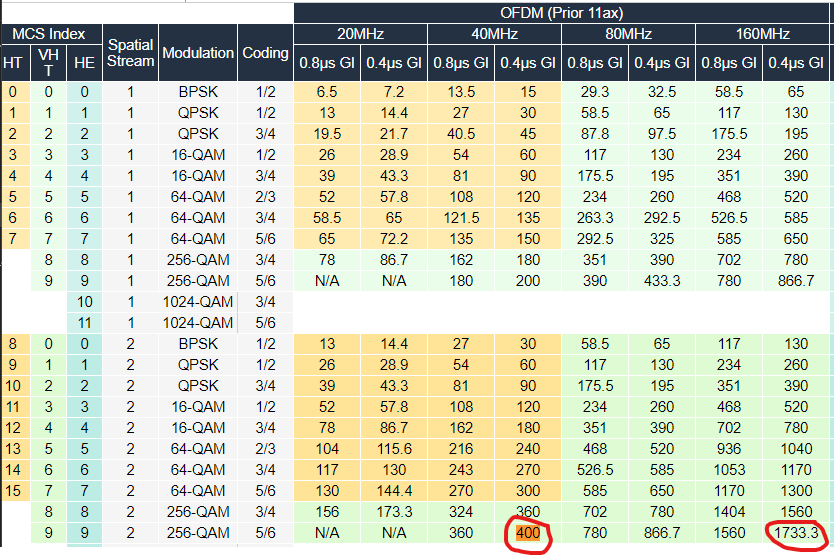

Here you can find the full MCS Index table.

------------------------------
Herman Robers
------------------------
If you have urgent issues, always contact your Aruba partner, distributor, or Aruba TAC Support. Check https://www.arubanetworks.com/support-services/contact-support/ for how to contact Aruba TAC. Any opinions expressed here are solely my own and not necessarily that of Hewlett Packard Enterprise or Aruba Networks.

In case your problem is solved, please invest the time to post a follow-up with the information on how you solved it. Others can benefit from that.
------------------------------

Original Message:
Sent: Jul 20, 2022 04:31 AM
From: Steinar Grande
Subject: AP 315's Max Speed

Interesting, my you provide one table for AX as well ?

Original Message:
Sent: Jun 21, 2022 04:25 PM
From: Dustin Burns
Subject: AP 315's Max Speed

FYI also you would need to get the same MCS on 2spatial streams with a 160mhz wide channel to get to the 1.7 Gbps



------------------------------
Dustin Burns

Lead Mobility Engineer @Worldcom Exchange, Inc.

ACCX 1271| ACMX 509| ACSP | ACDA | MVP Guru 2022
If my post was useful accept solution and/or give kudos


Original Message:
Sent: Jun 21, 2022 04:21 PM
From: Brandon Gregrich
Subject: AP 315's Max Speed

So this is normal to see regardless of the AP type?




Original Message:
Sent: Jun 21, 2022 04:02 PM
From: Dustin Burns
Subject: AP 315's Max Speed

You may be seeing the speed reported for a 2 spatial stream device on a 40mhz wide channel. The "marketing speed" is a theoretical maximum. You never really see speeds like that out on the real world. See this chart for expected speed with certain combinations of RSSI/SNR (Will dictate the modulation and coding), Channel Width, and Spatial Streams: https://mcsindex.com/

------------------------------
Dustin Burns

Lead Mobility Engineer @Worldcom Exchange, Inc.

ACCX 1271| ACMX 509| ACSP | ACDA | MVP Guru 2022
If my post was useful accept solution and/or give kudos
