Original Message:
Sent: Mar 06, 2025 09:09 AM
From: Dani Bachour
Subject: AP-375 with WLC 7010 running ArubaOS 8.10.0.14 LSR
Yes, they are in the same group as the other APs:
Original Message:
Sent: Mar 06, 2025 08:48 AM
From: cordless
Subject: AP-375 with WLC 7010 running ArubaOS 8.10.0.14 LSR
In which AP Group is the AP? The same as the other APs?

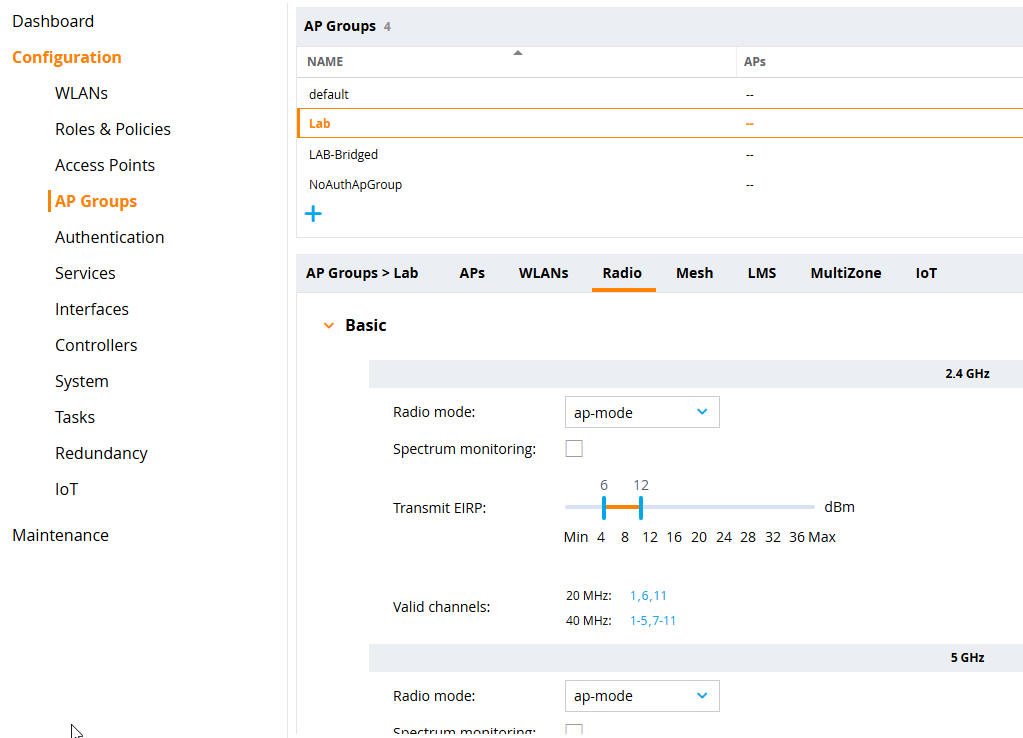

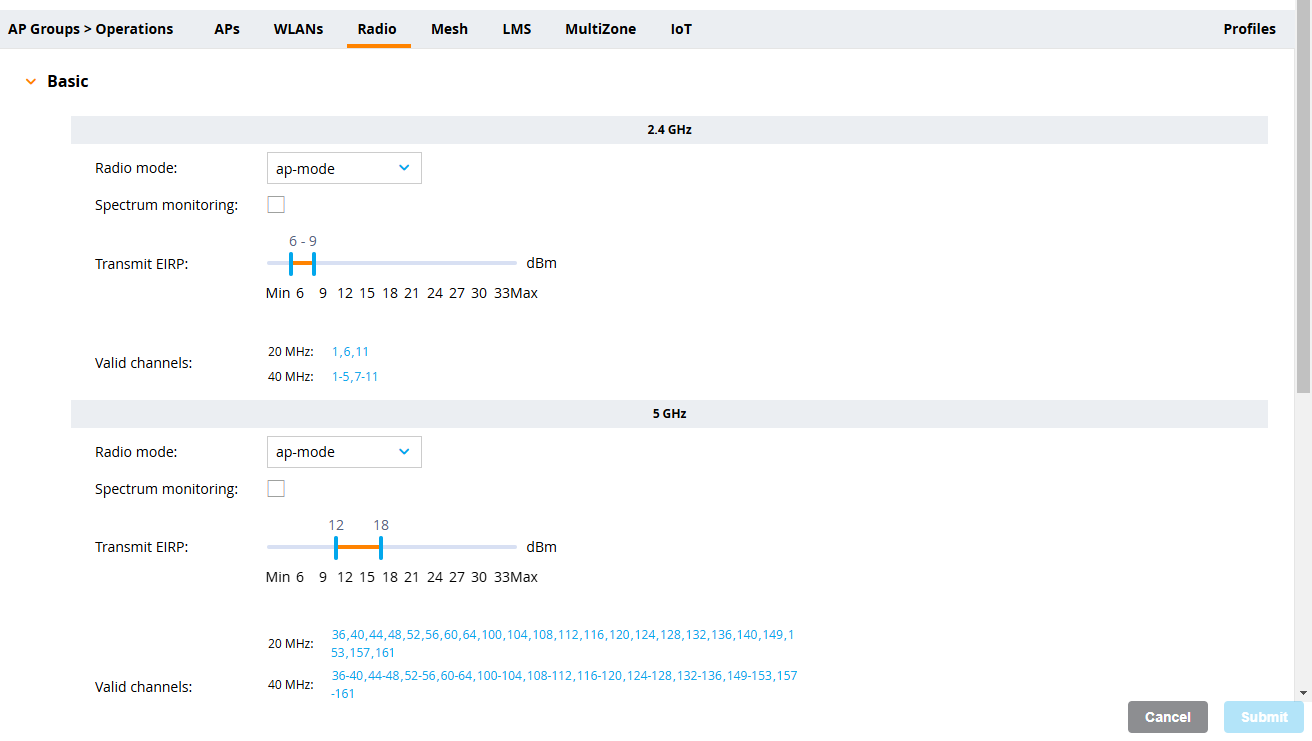

AirMonitor Radio Mode will be set in the AP Group - Radio Settings // The only other option could be that this setting is made specific to this AP or also called "per AP override" - show ap-name YourAP
https://arubanetworking.hpe.com/techdocs/ArubaOS_8.10.0_Web_Help/Content/arubaos-solutions/access-points/per-ap-overrd.htm
Original Message:
Sent: Mar 06, 2025 08:16 AM
From: Dani Bachour
Subject: AP-375 with WLC 7010 running ArubaOS 8.10.0.14 LSR
Hi Cordless,
The user profile in the source column is ap system-profile "default". The profile details:
AP system profile "default"---------------------------Parameter Value--------- -----RF Band gRecovery Mode autoRF Band for AM mode scanning allNative VLAN ID 1WIDS AMPDU Optimization EnabledTunnel Heartbeat Interval 1Session ACL ap-uplink-aclCorporate DNS Domain N/ASNMP sysContact N/ALED operating mode (11n/11ac APs only) normalLED override DisabledDriver log level warningsConsole log level emergenciesSAP MTU N/ARAP MTU 1300 bytesLMS IP N/ABackup LMS IP N/ALMS IPv6 N/ABackup LMS IPv6 N/ALMS Preemption DisabledLMS Hold-down Period 600 secLMS ping interval 20Remote-AP DHCP Server VLAN N/ARemote-AP DHCP Server Id 192.168.XX.XXRemote-AP DHCP Default Router 192.168.XX.XXRemote-AP DHCP DNS Server N/ARemote-AP CORP DNS Server N/ARemote-AP CORP DNS Server IPV6 N/ARemote-AP DHCP Pool Start 192.168.XX.XXRemote-AP DHCP Pool End 192.168.XX.XXRemote-AP DHCP Pool Netmask 255.255.255.0Remote-AP DHCP Lease Time 0 daysRemote-AP uplink total bandwidth 0 kbpsRemote-AP bw reservation 1 N/ARemote-AP bw reservation 2 N/ARemote-AP bw reservation 3 N/ARemote-AP Local Network Access DisabledFlex Radio Mode 2.4GHz-and-5GHzDual 5GHz Mode DisabledSplit-5GHz Mode DisabledIPM activation DisabledITM activation DisabledIPM power reduction steps with priorities N/AIPM Steps delete all NoBootstrap threshold 8Double Encrypt DisabledHeartbeat DSCP 0Management DSCP N/AIP DSCP to VLAN 802.1p priority mapping N/AMaintenance Mode DisabledMaximum Request Retries 10Request Retry Interval 10 secNumber of IPSEC retries 85Secondary Conductor IP/FQDN N/AAeroScout RTLS Server N/ARTLS Server configuration N/ARTLS Server Compatibility Mode EnabledSES-imagotag ESL Server IP N/ASES-imagotag ESL Server N/ASES-imagotag ESL Channel N/ASES-imagotag ESL Auth DisabledSES-imagotag ESL TLS FQDN Verification DisabledSES-imagotag ESL Radio Coexistence EnabledSlow Timer Recovery by rebooting itself EnabledTelnet/SSH DisabledDisable Runtime Factory Reset DisabledDisable RAP Tftp Image Upgrade DisabledImage URL N/ASpanning Tree DisabledAP multicast aggregation DisabledAP ARP attack protection DisabledAP multicast aggregation allowed VLANs noneConsole enable EnabledAP Console Protection EnabledAP Console Password ********Password for Backup ********AP USB Power mode autoAP POE mode sharedRF Band for Backup allOperation for Backup offGRE offload EnabledBridge offload EnabledHealth Check DisabledHealth Check Parameter mode ping packet-size 32 burst-size 5 report 60 frequency 10 retries 3Wired Port Down-Time By Shutdown Ethernet Link 0 secWired Port Down-Time By Shutdown POE 0 secAirMatch Report Period 30 minutesAirMatch Measurement Duration 5 minutesAirMatch Report Enabled EnabledAP Deploy-hour N/ADump collection profile defaultPMM report interval 10
Original Message:
Sent: Mar 06, 2025 07:49 AM
From: cordless
Subject: AP-375 with WLC 7010 running ArubaOS 8.10.0.14 LSR
Can you paste an output of:
show ap config ap-name <APNAME>
and from the output you will see the used in the row "Source", than additional the output from
show ap system-profile <PROFILENAME>
Original Message:
Sent: Mar 06, 2025 06:02 AM
From: Dani Bachour
Subject: AP-375 with WLC 7010 running ArubaOS 8.10.0.14 LSR
Hi people,
I am facing an issue with AP-375. After provisioning it on WLC, the AP mode is always AM. I have checked the RF profile, and it is configured correctly. In that same AP group, I have AP-305, which runs without problems. AP mode is AP. What could be the problem?
Best regards,
