  • 1.  AP SYS LED system in orange

    Posted Oct 31, 2025 11:51 AM

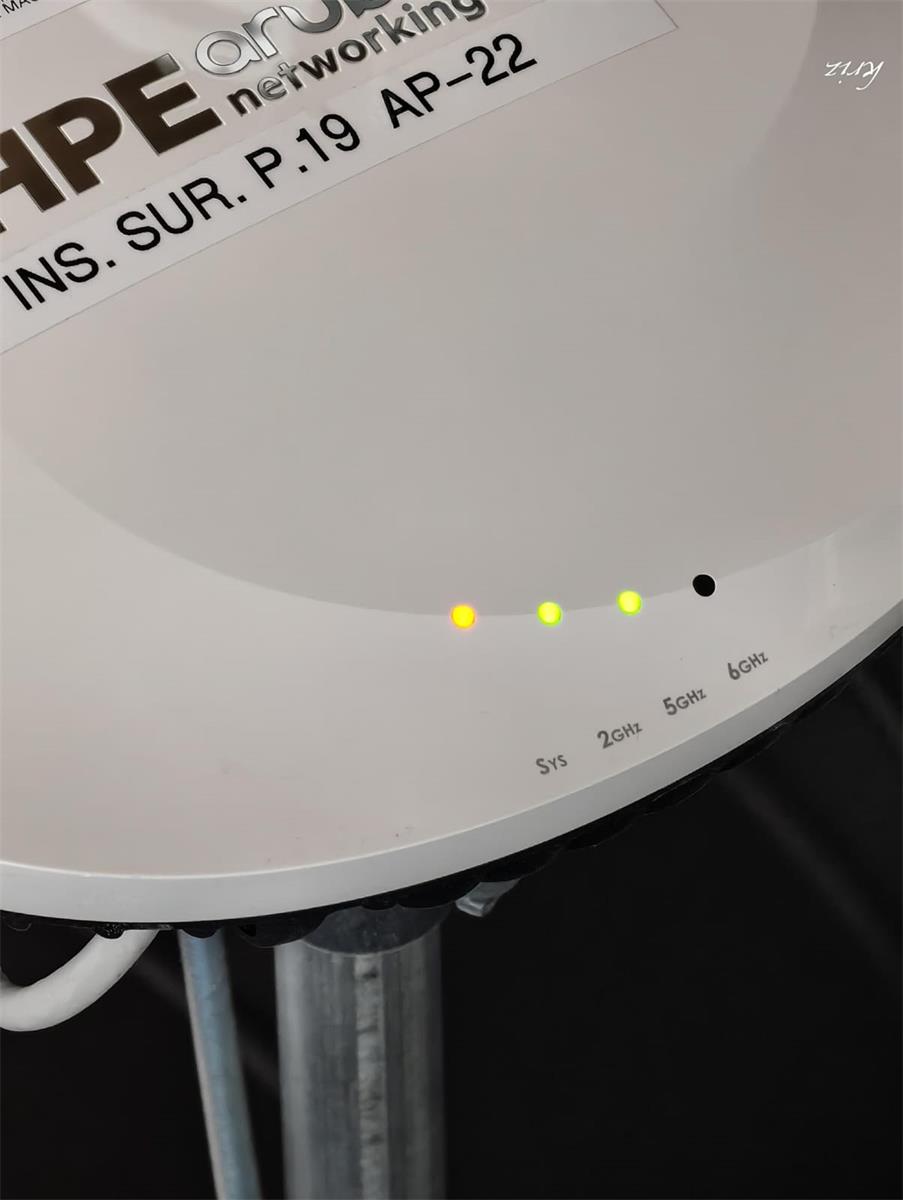

    Good morning, I have the following AP 635 with Aruba9004 controllers. Currently, the APs show the system in orange. How can I make it change to green? Lastly, I have them connected to Cisco 9300 switches.

    AP SYS ORANGE


    -------------------------------------------


  • 2.  RE: AP SYS LED system in orange
    Best Answer

    Posted Oct 31, 2025 02:14 PM

    Is LLDP enable such that the AP can negotiate class 6 POE with the switch?

    The switch may only deliver class 4 to the AP, and by default that puts it into "restricted mode" where the system LED is orange.

    The (only) restriction in that case is that the USB port is disabled..

    The easiest way to turn that LED green is to enable IPM in the system (which BTW is the default in recent code). IPM will remove any default restrictions, and only apply them if it is actually needed (by observing power consumption in real time). Since you're likely not even using USB and will not operate the AP in worst case mode, it is unlikely that IPM will do anything (and the LED will remain green).

    Or you could ensure that your Cisco switch delivers class 6 POE to the AP.



    ------------------------------
    /Onno Harms
    Wireless Platforms Product Management
    HPE Aruba Networking
    ------------------------------



  • 3.  RE: AP SYS LED system in orange

    Posted Oct 31, 2025 03:20 PM

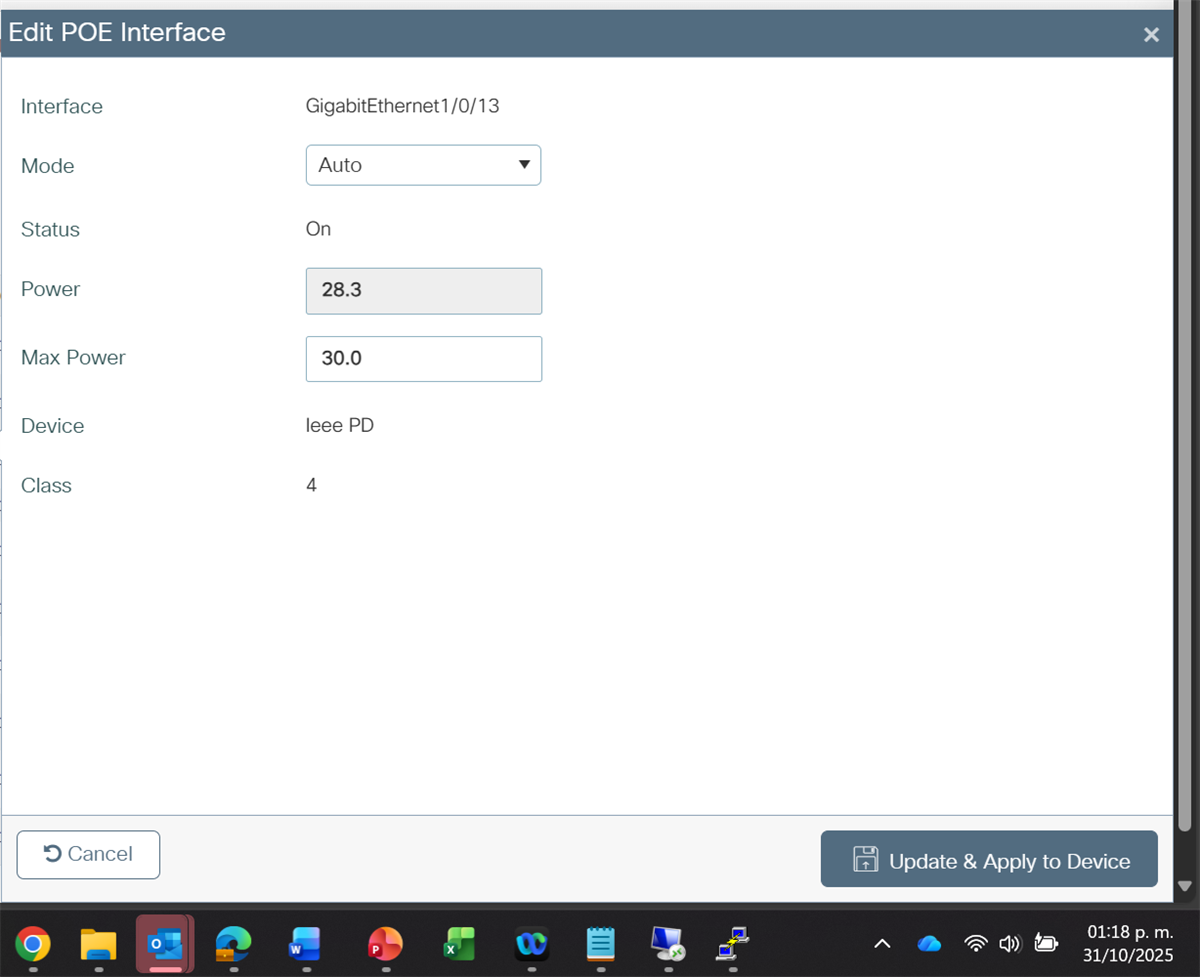

    Thank you very much for the response. From what I could check, my switch is PoE Class 4 (30W), maybe that is a limitation for the APs.

    POE CISCO
    -------------------------------------------

    Original Message


  • 4.  RE: AP SYS LED system in orange

    Posted Oct 31, 2025 03:24 PM

    One more question: does enabling the IPM have any impact on my operation?

    -------------------------------------------

    Original Message


  • 5.  RE: AP SYS LED system in orange

    Posted Oct 31, 2025 03:34 PM
    You can configure it not to reduce power or turn off the radios, but these are default settings applied until it gets to the power budget allowed.

    • Default priority steps: Common default steps, which are applied in order, include:
      • Disable USB.
      • Reduce radio power by 3 dB.
      • Reduce 2.4 GHz chains to 2x2.
      • Reduce 2.4 GHz chains to 1x1.
      • Throttle CPU to 75% of max.
      • Disable radio.


    UT Southwestern

    Medical Center

    The future of medicine, today.



    Original Message


  • 6.  RE: AP SYS LED system in orange

    Posted Nov 01, 2025 01:23 PM

    Unlikely in your case. IPM will only take any actions (apply reductions; not that the set and order/priority are configurable) when the actual AP power consumption is about to exceed the class 4 budget (25.5W). That is unlikely. For example, when not using USB, you will never hit this number.



    ------------------------------
    /Onno Harms
    Wireless Platforms Product Management
    HPE Networking
    ------------------------------

    Original Message


  • 7.  RE: AP SYS LED system in orange

    Posted Oct 31, 2025 03:09 PM
    Do you have LLDP enabled on the switch?

    UT Southwestern

    Medical Center

    The future of medicine, today.





  • 8.  RE: AP SYS LED system in orange

    Posted Oct 31, 2025 03:15 PM

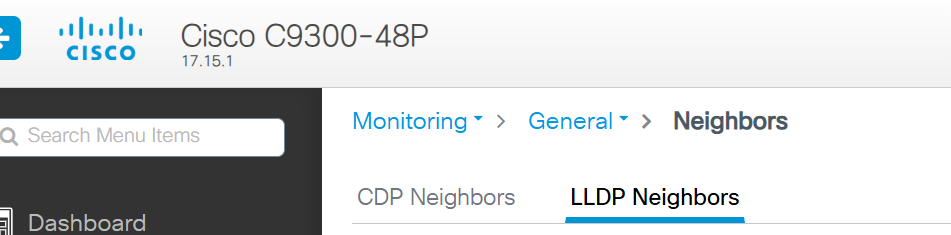

    Correct, it is enabled within the switch configuration.

    LLDP
    -------------------------------------------

    Original Message


  • 9.  RE: AP SYS LED system in orange

    Posted Oct 31, 2025 03:25 PM
    And the AP's are seen as neighbors? Do they appear in the controller and show the WLAN as up?   There could be several reasons they are showing orange.
