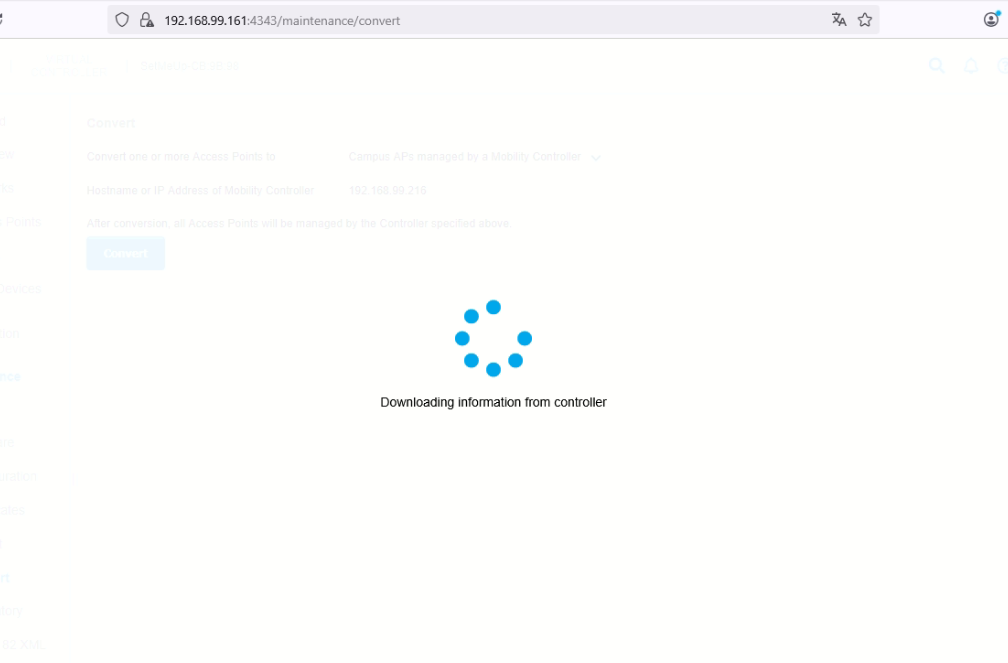

I'm experiencing an issue when attempting to convert and connect an AP505 (8.10.8) to a 9004RW controller (8.12.0.4).
The AP displays the message: "Retrieve image failed and AP will reboot in 15 minutes."
I've attached the relevant logs showing the image retrieval failure.
Could you please assist or advise on how to resolve this issue?
Target : undefined
show vpn status
profile name:default
--------------------------------------------------
current using tunnel :unselected tunnel
current tunnel using time :0
ipsec is preempt status :disable
ipsec is fast failover status :disable
ipsec hold on period :600s
ipsec tunnel monitor frequency (seconds/packet) :5
ipsec tunnel monitor timeout by lost packet cnt :6
ipsec reconnect duration (seconds) :30
ipsec primary tunnel crypto type :Cert
ipsec primary tunnel peer address :N/A
ipsec primary tunnel peer tunnel ip :N/A
ipsec primary tunnel ap tunnel ip :N/A
ipsec primary tunnel using interface :N/A
ipsec primary tunnel using MTU :N/A
ipsec primary tunnel current sm status :Init
ipsec primary tunnel tunnel status :Down
ipsec primary tunnel tunnel retry times :0
ipsec primary tunnel tunnel uptime :0
ipsec backup tunnel crypto type :Cert
ipsec backup tunnel peer address :N/A
ipsec backup tunnel peer tunnel ip :N/A
ipsec backup tunnel ap tunnel ip :N/A
ipsec backup tunnel using interface :N/A
ipsec backup tunnel using MTU :N/A
ipsec backup tunnel current sm status :Init
ipsec backup tunnel tunnel status :Down
ipsec backup tunnel tunnel retry times :0
ipsec backup tunnel tunnel uptime :0
end of show vpn status
========================================================
show gre status
GRE not configured - no status
end of show gre status
========================================================
show upgrade info
swarm upgrade status
--------------------
Mac IP Address Seed AP AP Class Status Image Info Error Detail
--- ---------- ------- -------- ------ ---------- ------------
ec:fc:c6:cb:9e:02 192.168.99.161 Yes Gemini image-ok ac-ftp://192.168.99.216/arm32.ari Retrieve image fail
ec:fc:c6:cb:7b:d0 192.168.99.144 No Gemini image-ok From Seed Retrieve image fail
ec:fc:c6:cb:90:a2 192.168.99.134 No Gemini image-ok From Seed Retrieve image fail
ec:fc:c6:cb:76:46 192.168.99.148 No Gemini image-ok From Seed Retrieve image fail
ec:fc:c6:cb:7e:0c 192.168.99.155 No Gemini image-ok From Seed Retrieve image fail
ec:fc:c6:cb:9b:98 192.168.99.162 No Gemini image-ok From Seed Retrieve image fail
ec:fc:c6:cb:8e:28 192.168.99.146 No Gemini image-ok From Seed Retrieve image fail
ec:fc:c6:cc:57:c0 192.168.99.164 No Gemini image-ok From Seed Retrieve image fail
ec:fc:c6:cb:7b:f4 192.168.99.160 No Gemini image-ok From Seed Retrieve image fail
ec:fc:c6:cb:94:52 192.168.99.137 No Gemini image-ok From Seed Retrieve image fail
Auto reboot :enable
Use external URL :enable
Conductor wait Time :262040 secs 0 count
Switch Partition :enable
Upgrade in process :No
UAP convert process :No
end of show upgrade info
========================================================
show log upgrade
----------Download log start----------
Executing ('/usr/sbin/wget -T 20 -t 1 -M 29712384 --no-proxy --proxy-passwd=****** -a /tmp/download_url_log ftp://sap:x@192.168.99.216/arm32.ari')
fetching ('/usr/sbin/wget -T 20 -t 1 -M 29712384 --no-proxy --proxy-passwd=****** -a /tmp/download_url_log ftp://sap:x@192.168.99.216/arm32.ari')
--08:17:42-- ftp://sap:*password*@192.168.99.216/arm32.ari
=> `arm32.ari'
Connecting to 192.168.99.216:21... connected.
Logging in as sap ... Logged in!
==> SYST ... done. ==> PWD ... done.
==> TYPE I ... done. ==> CWD not needed.
==> PASV ... done. ==> RETR arm32.ari ...
No such file `arm32.ari'.
Error: failed to retrieve image
Info: try with tftp to download the image.
Error: failed again to retrieve image with tftp proto
cleaning up
done
----------Download log end------------
Download status: incomplete
----------Upgrade log start----------
upgrade log not available
----------Upgrade log end------------
Upgrade status: upgrade status not available
end of show log upgrade
========================================================
show log rapper
Rapper info not available
end of show log rapper
========================================================
-------------------------------------------
