I didn't use the wizard, since my campus network is not a 3-Tier L3 as proposed by the wizard. I have only Edge and Border switches (2-Tier Network Architectures) .
Original Message:
Sent: Aug 29, 2023 10:00 PM
From: ariyap
Subject: Aruba central Netconductor Vxlan
did you use the network wizard to deploy the underlay?
------------------------------
If my post was useful accept solution and/or give kudos.
Any opinions expressed here are solely my own and not necessarily that of HPE or Aruba.
Original Message:
Sent: Aug 29, 2023 05:46 PM
From: kadis500
Subject: Aruba central Netconductor Vxlan
I found the problem, Netconductor push 2 differents virtual-mac on VSX-Border switchs instead of one shared virtual-mac.
I forced virtual-mac of the second VSX member with the first one, and the problem is resolved.
Original Message:
Sent: Aug 29, 2023 09:26 AM
From: kadis500
Subject: Aruba central Netconductor Vxlan
Hello,

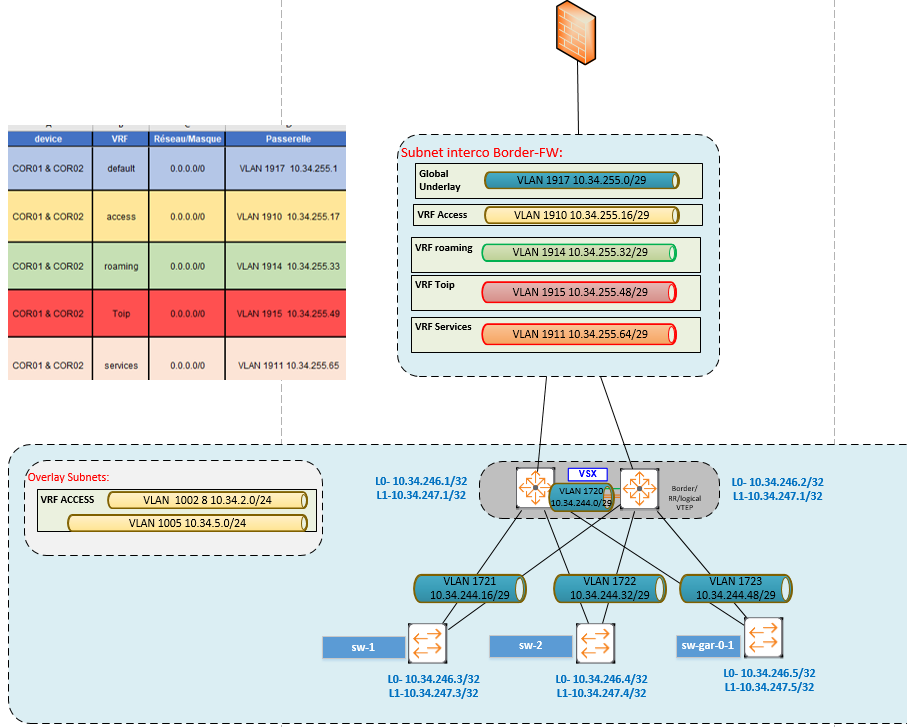

I have configured a fabric VXLAN through Netconductor .
I have 2 core switch 8325 on VSX ( Border and Route Reflector). and some access switch 6300 acting as Edge
I have a default static routing between the border and the external device for each VRF, and i added the redistribute static on the EVPN BGP configuration on each VRF.
I have also enable vsx active-forwarding .
My problem is i can't reach external network when the 2 VSX switchs are UP, but when one of them is down , i can reach the external network !
For me the problem come from the VSX switches.
Fo you have any suggestions ?
Thank you
