  • 1.  Aruba Central SAML Azure AD

    Posted Nov 24, 2020 03:21 AM
    Has anyone had success in setting up SAML authentication using Azure for Aruba Central?

    I have followed the below video exactly twice now and got the same result.

    Aruba Central SSO with Azure AD

    It seems to pass through the Azure authentication stage successfully and then I get the below error:

    {
      "error_code": "FAILED EXTERNAL AUTH - SAML ACS PROCESSING",
      "message": [
        "invalid_response"
      ]
    }
    I am using the saml-tracer chrome extension to monitor the login and all the attributes appear to be working correctly.

    Cheers


  • 2.  RE: Aruba Central SAML Azure AD

    Posted Nov 24, 2020 10:32 AM
    I configured this some time ago following that video and the documentation in Central.

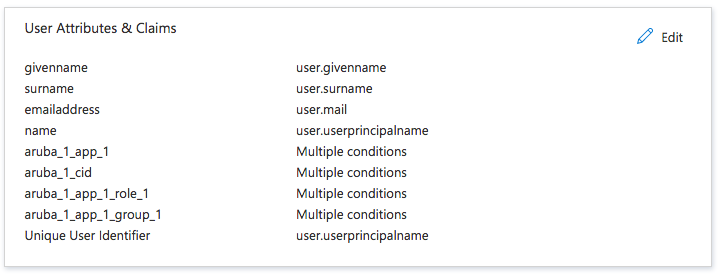

    From what I remember from then was getting the claims right was challenging for me because I changed some names like app to my own name, but you need to take it literally. Also I mixed up some _underscores, and it needs to all exactly match. This is what I return in my setup:

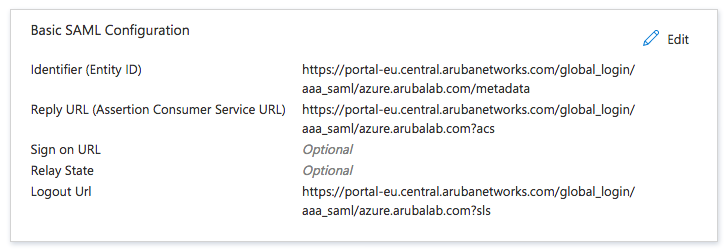

    Also, the SAML ACS (Assertion Consumer Service) has to do with the Return URL according to this page.
    That part looks like this for me: (I enabled the SSO on the domain azure.arubalab.com)

    Please double-check those settings.

    Aruba Support should be able to assist you with this as well, as they can better look up what the message means or may be able to do deeper analysis.

    ------------------------------
    Herman Robers
    ------------------------
    If you have urgent issues, always contact your Aruba partner, distributor or Aruba TAC Support. Check https://www.arubanetworks.com/support-services/contact-support/ for how to contact Aruba TAC.
    ------------------------------



  • 3.  RE: Aruba Central SAML Azure AD

    Posted Jan 19, 2021 10:32 AM
    This is  most unusual. I   have configured  APs  at each site  That I am working at  , register the APs , then check in Aruba Central, the names   do not appear and go back to the mac addresses.  What  could be causing this . Aruba Central names bug in the  Software . Any  helpful information on resolving this would be most appreciated.  Thanks . Vijay

    ------------------------------
    Vijay Pillai
    ------------------------------
