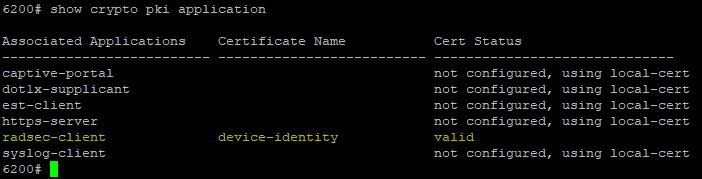

the switch command to check the TA cert is installed.
also checking the Radsec application identity.
I am not sure when the cert gets pushed but I think it should be when you configure central NAC server group in switch system profile or AAA Authentication profile.
------------------------------
If my post was useful accept solution and/or give kudos.
Any opinions expressed here are solely my own and not necessarily that of HPE or Aruba.
------------------------------
Original Message:
Sent: May 29, 2026 08:05 AM
From: JaimeVS
Subject: Central NAC - problem with wired authentication
No, I cannot find that line. What should I do in Central to push that?
Original Message:
Sent: May 29, 2026 07:59 AM
From: willembargeman
Subject: Central NAC - problem with wired authentication
Looks all good. Please can you check if the TA profile is correctly pushed to the switch?
Config line starts with:
crypto pki ta-profile sys_central_nac
------------------------------
Willem Bargeman
Systems Engineer Aruba
ACEX #125
Original Message:
Sent: May 29, 2026 07:53 AM
From: JaimeVS
Subject: Central NAC - problem with wired authentication
I just did.
Original Message:
Sent: May 29, 2026 06:24 AM
From: willembargeman
Subject: Central NAC - problem with wired authentication
I think so. Please share the output of the command show crypto pki certificate device-identity via a DM
------------------------------
Willem Bargeman
Systems Engineer Aruba
ACEX #125
Original Message:
Sent: May 29, 2026 04:48 AM
From: JaimeVS
Subject: Central NAC - problem with wired authentication
In show events -r I'm seeing a lot of entries like this one:
2026-05-29T10:44:53.208866+02:00 6000 port-accessd[20937]: Event|7709|LOG_WARN|UMM|-|Certificate *.cloudguest.central.arubanetworks.com rejected due to verification failure (30)
Is there a problem there?
Original Message:
Sent: May 28, 2026 03:01 PM
From: willembargeman
Subject: Central NAC - problem with wired authentication
Is TCP port 2083 allowed on the network to the Central NAC servers?
Can you share the output of the command show events -r and show crypto pki certificate device-identity (maybe best in a DM)
------------------------------
Willem Bargeman
Systems Engineer Aruba
ACEX #125
Original Message:
Sent: May 28, 2026 11:51 AM
From: JaimeVS
Subject: Central NAC - problem with wired authentication
I'm having problems with setting up wired authentication from a CX 6100 to Central NAC. I have configured all the policies and profiles, but I never see authentication attempts.
If I go to the switch and run "show radius-server detail" I see the following output:
Server-Name : euw1.cloudguest.central.arubanetworks.com
Auth-Port : 2083
Accounting-Port : 2083
VRF : default
TLS Enabled : Yes
TLS Connection Status : tls_connection_failed
Initial TLS Connection Timeout : 30 seconds
Timeout : 20 seconds
Auth-Type : pap
Resolved-Address : 3.126.68.5
Server-Group:Priority : sys_central_nac:1
Tracking : disabled
Tracking-Mode : any
Tracking-Method : access-request
Reachability-Status : unknown
Tracking-Last-Attempted : N/A
Next-Tracking-Request : N/A
Port-Access Session : keep-alive
So it appears that the TLS connection for the RadSec between switch and Central is failing, but how could this be if this is supposedly done automatically and with the correct certificates?
-------------------------------------------
