Controllerless Networks

yes it is basically the same  concept you can specific specific allow list or just use allow-all.

Just like Instant APs, even if you use allow-all for your pre-auth role, it will by default only allow basic services like DHCP/DNS and allow access to the host in your captive portal URL.

I suggest try the allow-all policy for simple straight forward deployments. but the other way also should work.

anyway what does the exact policy for your pre-auth role look like?

we have it at allow all, but we are not getting the CP being triggered, instead the client can just access any site.

yes it is basically the same  concept you can specific specific allow list or just use allow-all.

Just like Instant APs, even if you use allow-all for your pre-auth role, it will by default only allow basic services like DHCP/DNS and allow access to the host in your captive portal URL.

I suggest try the allow-all policy for simple straight forward deployments. but the other way also should work.

anyway what does the exact policy for your pre-auth role look like?

have you assign the preauth user role to mobility access point?

also paste the output of the "show access-rule <preauth role name> from the AP.

we have it at allow all, but we are not getting the CP being triggered, instead the client can just access any site.

yes it is basically the same  concept you can specific specific allow list or just use allow-all.

Just like Instant APs, even if you use allow-all for your pre-auth role, it will by default only allow basic services like DHCP/DNS and allow access to the host in your captive portal URL.

I suggest try the allow-all policy for simple straight forward deployments. but the other way also should work.

anyway what does the exact policy for your pre-auth role look like?

preauth role has been assigned to Device group scope (access points and gateway), but when issuing the command, we don't see the role popping up besides the defaults.

have you assign the preauth user role to mobility access point?

also paste the output of the "show access-rule <preauth role name> from the AP.

we have it at allow all, but we are not getting the CP being triggered, instead the client can just access any site.

yes it is basically the same  concept you can specific specific allow list or just use allow-all.

Just like Instant APs, even if you use allow-all for your pre-auth role, it will by default only allow basic services like DHCP/DNS and allow access to the host in your captive portal URL.

I suggest try the allow-all policy for simple straight forward deployments. but the other way also should work.

anyway what does the exact policy for your pre-auth role look like?

Could you share screenshots of your configuration? Is the role configured on the gateway and your enforcing captive portal form there instead?

------------------------------
Dustin Burns

Lead Mobility Engineer @Worldcom Exchange, Inc.

ACCX 1271| ACMX 509| ACSP | ACDA | MVP Guru 2022-2023
If my post was useful accept solution and/or give kudos
------------------------------


Original Message:
Sent: Jun 16, 2026 06:58 AM
From: PE-40b8d0
Subject: CNX with tunneled captive portal to ClearPass

preauth role has been assigned to Device group scope (access points and gateway), but when issuing the command, we don't see the role popping up besides the defaults.

Original Message:
Sent: Jun 13, 2026 07:51 PM
From: AP-e172d8
Subject: CNX with tunneled captive portal to ClearPass

have you assign the preauth user role to mobility access point?

also paste the output of the "show access-rule <preauth role name> from the AP.

------------------------------
If my post was useful accept solution and/or give kudos.
Any opinions expressed here are solely my own and not necessarily that of HPE or Aruba.
------------------------------




Original Message:
Sent: Jun 13, 2026 04:32 AM
From: PE-40b8d0
Subject: CNX with tunneled captive portal to ClearPass

we have it at allow all, but we are not getting the CP being triggered, instead the client can just access any site.

Original Message:
Sent: Jun 13, 2026 02:26 AM
From: AP-e172d8
Subject: CNX with tunneled captive portal to ClearPass

yes it is basically the same  concept you can specific specific allow list or just use allow-all.

Just like Instant APs, even if you use allow-all for your pre-auth role, it will by default only allow basic services like DHCP/DNS and allow access to the host in your captive portal URL.

I suggest try the allow-all policy for simple straight forward deployments. but the other way also should work.

anyway what does the exact policy for your pre-auth role look like?

------------------------------
If my post was useful accept solution and/or give kudos.
Any opinions expressed here are solely my own and not necessarily that of HPE or Aruba.
------------------------------

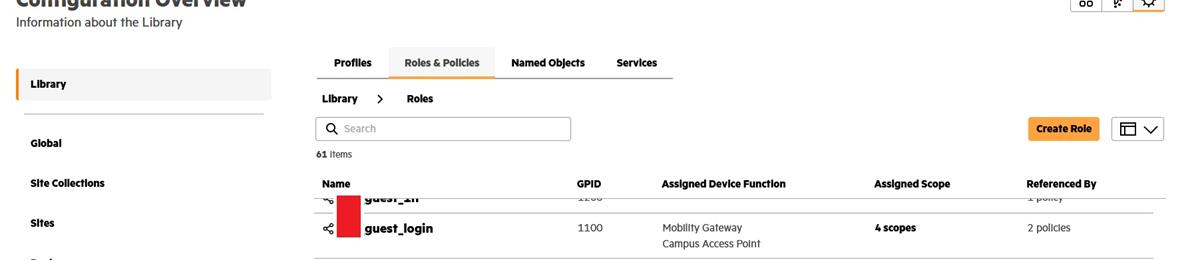

Assigned Scopes

Global	Global
Campus	Site Collection
grp_xxxx	Device Group
grp_xxxx	Device Group

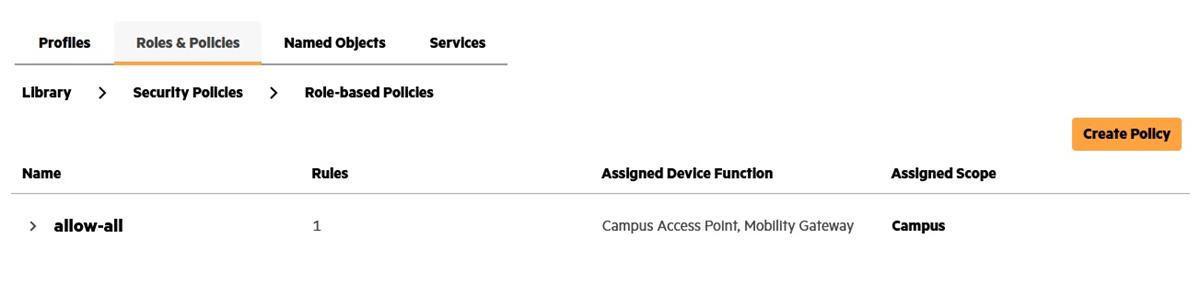

The policy used by the role:

Original Message:
Sent: Jun 16, 2026 07:43 AM
From: DB86
Subject: CNX with tunneled captive portal to ClearPass

Could you share screenshots of your configuration? Is the role configured on the gateway and your enforcing captive portal form there instead?

------------------------------
Dustin Burns

Lead Mobility Engineer @Worldcom Exchange, Inc.

ACCX 1271| ACMX 509| ACSP | ACDA | MVP Guru 2022-2023
If my post was useful accept solution and/or give kudos
------------------------------



Original Message:
Sent: Jun 16, 2026 06:58 AM
From: PE-40b8d0
Subject: CNX with tunneled captive portal to ClearPass

preauth role has been assigned to Device group scope (access points and gateway), but when issuing the command, we don't see the role popping up besides the defaults.

Original Message:
Sent: Jun 13, 2026 07:51 PM
From: AP-e172d8
Subject: CNX with tunneled captive portal to ClearPass

have you assign the preauth user role to mobility access point?

also paste the output of the "show access-rule <preauth role name> from the AP.

------------------------------
If my post was useful accept solution and/or give kudos.
Any opinions expressed here are solely my own and not necessarily that of HPE or Aruba.
------------------------------





Original Message:
Sent: Jun 13, 2026 04:32 AM
From: PE-40b8d0
Subject: CNX with tunneled captive portal to ClearPass

we have it at allow all, but we are not getting the CP being triggered, instead the client can just access any site.

Original Message:
Sent: Jun 13, 2026 02:26 AM
From: AP-e172d8
Subject: CNX with tunneled captive portal to ClearPass

yes it is basically the same  concept you can specific specific allow list or just use allow-all.

Just like Instant APs, even if you use allow-all for your pre-auth role, it will by default only allow basic services like DHCP/DNS and allow access to the host in your captive portal URL.

I suggest try the allow-all policy for simple straight forward deployments. but the other way also should work.

anyway what does the exact policy for your pre-auth role look like?

------------------------------
If my post was useful accept solution and/or give kudos.
Any opinions expressed here are solely my own and not necessarily that of HPE or Aruba.
------------------------------

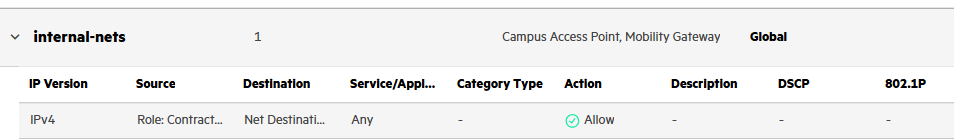

Looks like there are two policies applied ot the role. Can you show the second one?

Assigned Scopes

Global	Global
Campus	Site Collection
grp_xxxx	Device Group
grp_xxxx	Device Group

The policy used by the role:

Original Message:
Sent: Jun 16, 2026 07:43 AM
From: DB86
Subject: CNX with tunneled captive portal to ClearPass

Could you share screenshots of your configuration? Is the role configured on the gateway and your enforcing captive portal form there instead?

------------------------------
Dustin Burns

Lead Mobility Engineer @Worldcom Exchange, Inc.

ACCX 1271| ACMX 509| ACSP | ACDA | MVP Guru 2022-2023
If my post was useful accept solution and/or give kudos
------------------------------




Original Message:
Sent: Jun 16, 2026 06:58 AM
From: PE-40b8d0
Subject: CNX with tunneled captive portal to ClearPass

preauth role has been assigned to Device group scope (access points and gateway), but when issuing the command, we don't see the role popping up besides the defaults.

Original Message:
Sent: Jun 13, 2026 07:51 PM
From: AP-e172d8
Subject: CNX with tunneled captive portal to ClearPass

have you assign the preauth user role to mobility access point?

also paste the output of the "show access-rule <preauth role name> from the AP.

------------------------------
If my post was useful accept solution and/or give kudos.
Any opinions expressed here are solely my own and not necessarily that of HPE or Aruba.
------------------------------






Original Message:
Sent: Jun 13, 2026 04:32 AM
From: PE-40b8d0
Subject: CNX with tunneled captive portal to ClearPass

we have it at allow all, but we are not getting the CP being triggered, instead the client can just access any site.

Original Message:
Sent: Jun 13, 2026 02:26 AM
From: AP-e172d8
Subject: CNX with tunneled captive portal to ClearPass

yes it is basically the same  concept you can specific specific allow list or just use allow-all.

Just like Instant APs, even if you use allow-all for your pre-auth role, it will by default only allow basic services like DHCP/DNS and allow access to the host in your captive portal URL.

I suggest try the allow-all policy for simple straight forward deployments. but the other way also should work.

anyway what does the exact policy for your pre-auth role look like?

------------------------------
If my post was useful accept solution and/or give kudos.
Any opinions expressed here are solely my own and not necessarily that of HPE or Aruba.
------------------------------

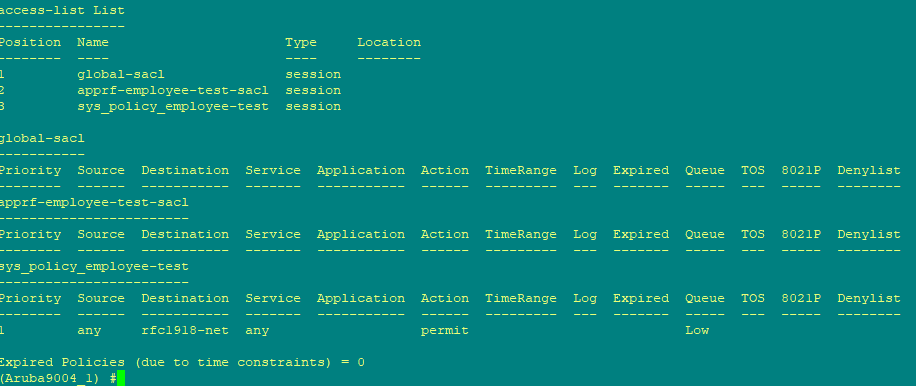

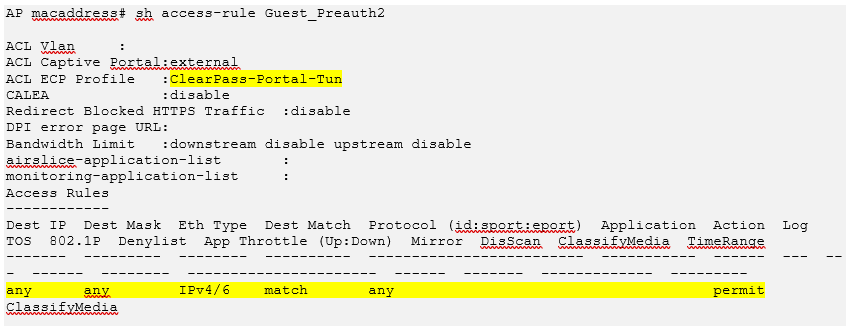

if you dont see the preauth role when you run  "show access-rule <preauth role name>" then that's the issue.

Check if there are sync issues in the audit trail.

This is from my working setup.

Looks like there are two policies applied ot the role. Can you show the second one?

Assigned Scopes

Global	Global
Campus	Site Collection
grp_xxxx	Device Group
grp_xxxx	Device Group

The policy used by the role:

Original Message:
Sent: Jun 16, 2026 07:43 AM
From: DB86
Subject: CNX with tunneled captive portal to ClearPass

Could you share screenshots of your configuration? Is the role configured on the gateway and your enforcing captive portal form there instead?

------------------------------
Dustin Burns

Lead Mobility Engineer @Worldcom Exchange, Inc.

ACCX 1271| ACMX 509| ACSP | ACDA | MVP Guru 2022-2023
If my post was useful accept solution and/or give kudos
------------------------------





Original Message:
Sent: Jun 16, 2026 06:58 AM
From: PE-40b8d0
Subject: CNX with tunneled captive portal to ClearPass

preauth role has been assigned to Device group scope (access points and gateway), but when issuing the command, we don't see the role popping up besides the defaults.

Original Message:
Sent: Jun 13, 2026 07:51 PM
From: AP-e172d8
Subject: CNX with tunneled captive portal to ClearPass

have you assign the preauth user role to mobility access point?

also paste the output of the "show access-rule <preauth role name> from the AP.

------------------------------
If my post was useful accept solution and/or give kudos.
Any opinions expressed here are solely my own and not necessarily that of HPE or Aruba.
------------------------------







Original Message:
Sent: Jun 13, 2026 04:32 AM
From: PE-40b8d0
Subject: CNX with tunneled captive portal to ClearPass

we have it at allow all, but we are not getting the CP being triggered, instead the client can just access any site.

Original Message:
Sent: Jun 13, 2026 02:26 AM
From: AP-e172d8
Subject: CNX with tunneled captive portal to ClearPass

yes it is basically the same  concept you can specific specific allow list or just use allow-all.

Just like Instant APs, even if you use allow-all for your pre-auth role, it will by default only allow basic services like DHCP/DNS and allow access to the host in your captive portal URL.

I suggest try the allow-all policy for simple straight forward deployments. but the other way also should work.

anyway what does the exact policy for your pre-auth role look like?

------------------------------
If my post was useful accept solution and/or give kudos.
Any opinions expressed here are solely my own and not necessarily that of HPE or Aruba.
------------------------------

This is in the audit trail:

Configuration settings were filtered for device ['xx:xx:xx:xx:xx:xx'] due to device capability limitations.

Module: Policy, Profile: sys_policy_XXXtest
Unsupported settings: Role (supported deleting configurations: non-compatibility with AP(diatype ext))

These settings are not supported on this device type and were filtered from the device configuration.

--

Configuration settings were filtered for device ['xx:xx:xx:xx:xx:xx'] due to device capability limitations.

Module: Wlan, Profile: GUESTXXX
Unsupported settings: Local Proxy Ns

These settings are not supported on this device type and were filtered from the device configuration.

Role was deleted and readded, now it pushed it. We will test the portal later today

Original Message:
Sent: Jun 16, 2026 07:10 PM
From: AP-e172d8
Subject: CNX with tunneled captive portal to ClearPass

if you dont see the preauth role when you run  "show access-rule <preauth role name>" then that's the issue.

Check if there are sync issues in the audit trail.

This is from my working setup.

------------------------------
If my post was useful accept solution and/or give kudos.
Any opinions expressed here are solely my own and not necessarily that of HPE or Aruba.
------------------------------



Original Message:
Sent: Jun 16, 2026 03:17 PM
From: DB86
Subject: CNX with tunneled captive portal to ClearPass

Looks like there are two policies applied ot the role. Can you show the second one?

------------------------------
Dustin Burns

Lead Mobility Engineer @Worldcom Exchange, Inc.

ACCX 1271| ACMX 509| ACSP | ACDA | MVP Guru 2022-2023
If my post was useful accept solution and/or give kudos
------------------------------




Original Message:
Sent: Jun 16, 2026 08:02 AM
From: PE-40b8d0
Subject: CNX with tunneled captive portal to ClearPass

Assigned Scopes

Global	Global
Campus	Site Collection
grp_xxxx	Device Group
grp_xxxx	Device Group

The policy used by the role:

Original Message:
Sent: Jun 16, 2026 07:43 AM
From: DB86
Subject: CNX with tunneled captive portal to ClearPass

Could you share screenshots of your configuration? Is the role configured on the gateway and your enforcing captive portal form there instead?

------------------------------
Dustin Burns

Lead Mobility Engineer @Worldcom Exchange, Inc.

ACCX 1271| ACMX 509| ACSP | ACDA | MVP Guru 2022-2023
If my post was useful accept solution and/or give kudos
------------------------------






Original Message:
Sent: Jun 16, 2026 06:58 AM
From: PE-40b8d0
Subject: CNX with tunneled captive portal to ClearPass

preauth role has been assigned to Device group scope (access points and gateway), but when issuing the command, we don't see the role popping up besides the defaults.

Original Message:
Sent: Jun 13, 2026 07:51 PM
From: AP-e172d8
Subject: CNX with tunneled captive portal to ClearPass

have you assign the preauth user role to mobility access point?

also paste the output of the "show access-rule <preauth role name> from the AP.

------------------------------
If my post was useful accept solution and/or give kudos.
Any opinions expressed here are solely my own and not necessarily that of HPE or Aruba.
------------------------------








Original Message:
Sent: Jun 13, 2026 04:32 AM
From: PE-40b8d0
Subject: CNX with tunneled captive portal to ClearPass

we have it at allow all, but we are not getting the CP being triggered, instead the client can just access any site.

Original Message:
Sent: Jun 13, 2026 02:26 AM
From: AP-e172d8
Subject: CNX with tunneled captive portal to ClearPass

yes it is basically the same  concept you can specific specific allow list or just use allow-all.

Just like Instant APs, even if you use allow-all for your pre-auth role, it will by default only allow basic services like DHCP/DNS and allow access to the host in your captive portal URL.

I suggest try the allow-all policy for simple straight forward deployments. but the other way also should work.

anyway what does the exact policy for your pre-auth role look like?

------------------------------
If my post was useful accept solution and/or give kudos.
Any opinions expressed here are solely my own and not necessarily that of HPE or Aruba.
------------------------------

have you assign the preauth user role to mobility access point?

also paste the output of the "show access-rule <preauth role name> from the AP.

we have it at allow all, but we are not getting the CP being triggered, instead the client can just access any site.

yes it is basically the same  concept you can specific specific allow list or just use allow-all.

Just like Instant APs, even if you use allow-all for your pre-auth role, it will by default only allow basic services like DHCP/DNS and allow access to the host in your captive portal URL.

I suggest try the allow-all policy for simple straight forward deployments. but the other way also should work.

anyway what does the exact policy for your pre-auth role look like?

Hello,

We have applied the user role to both Mobility Gateway and Campus Access point as per test.

From the requested output: I don't see any access-rule named to the Pre-Auth user role we applied..

Kr,

Koen

have you assign the preauth user role to mobility access point?

also paste the output of the "show access-rule <preauth role name> from the AP.

we have it at allow all, but we are not getting the CP being triggered, instead the client can just access any site.

yes it is basically the same  concept you can specific specific allow list or just use allow-all.

Just like Instant APs, even if you use allow-all for your pre-auth role, it will by default only allow basic services like DHCP/DNS and allow access to the host in your captive portal URL.

I suggest try the allow-all policy for simple straight forward deployments. but the other way also should work.

anyway what does the exact policy for your pre-auth role look like?

Koen, if you don't see the Pre-Auth role then you need to check the audit trail to see what has gone wrong, or you can delete the role and start again. you can always share some screenshots here as well.

Hello,

We have applied the user role to both Mobility Gateway and Campus Access point as per test.

From the requested output: I don't see any access-rule named to the Pre-Auth user role we applied..

Kr,

Koen

have you assign the preauth user role to mobility access point?

also paste the output of the "show access-rule <preauth role name> from the AP.

we have it at allow all, but we are not getting the CP being triggered, instead the client can just access any site.

yes it is basically the same  concept you can specific specific allow list or just use allow-all.

Just like Instant APs, even if you use allow-all for your pre-auth role, it will by default only allow basic services like DHCP/DNS and allow access to the host in your captive portal URL.

I suggest try the allow-all policy for simple straight forward deployments. but the other way also should work.

anyway what does the exact policy for your pre-auth role look like?

Hello,

In the meanwhile we have tried configuring a new policy and attaching it to the role, and now it does work...

The policy I initially created was named "allow-all", while the new policy is named "allow-any", this one immediately works.

Either "allow-all" is a restricted name, or there is something wrong with the creation config push. Unassigning and assigning again doesn't help, I didn't try to re-create it, I'll just stick with the "allow-any" for now.

We do see the output correctly.

I'm just wondering for other roles, which are enforced by Clearpass. We send aruba-user-role "user", we see the client getting the role "user", but when I do "show rights user" , I don't see the allow-any policy which I assigned to the role and pushed on Mobility Gateway level. Not sure what we are missing here.

Thanks for the assistance.

Kr,

Koen

Koen, if you don't see the Pre-Auth role then you need to check the audit trail to see what has gone wrong, or you can delete the role and start again. you can always share some screenshots here as well.

Hello,

We have applied the user role to both Mobility Gateway and Campus Access point as per test.

From the requested output: I don't see any access-rule named to the Pre-Auth user role we applied..

Kr,

Koen

have you assign the preauth user role to mobility access point?

also paste the output of the "show access-rule <preauth role name> from the AP.

we have it at allow all, but we are not getting the CP being triggered, instead the client can just access any site.

yes it is basically the same  concept you can specific specific allow list or just use allow-all.

Just like Instant APs, even if you use allow-all for your pre-auth role, it will by default only allow basic services like DHCP/DNS and allow access to the host in your captive portal URL.

I suggest try the allow-all policy for simple straight forward deployments. but the other way also should work.

anyway what does the exact policy for your pre-auth role look like?

Soon I'll be publishing my next technote that will cover New Central configuration for tunnel WLANs.

But in the mean time when you send the VSA use role from ClearPass, you need to ensure that user role and its associated policies is configured and assigned correctly to the device type and to the scope.

Hello,

In the meanwhile we have tried configuring a new policy and attaching it to the role, and now it does work...

The policy I initially created was named "allow-all", while the new policy is named "allow-any", this one immediately works.

Either "allow-all" is a restricted name, or there is something wrong with the creation config push. Unassigning and assigning again doesn't help, I didn't try to re-create it, I'll just stick with the "allow-any" for now.

We do see the output correctly.

I'm just wondering for other roles, which are enforced by Clearpass. We send aruba-user-role "user", we see the client getting the role "user", but when I do "show rights user" , I don't see the allow-any policy which I assigned to the role and pushed on Mobility Gateway level. Not sure what we are missing here.

Thanks for the assistance.

Kr,

Koen

Koen, if you don't see the Pre-Auth role then you need to check the audit trail to see what has gone wrong, or you can delete the role and start again. you can always share some screenshots here as well.

Hello,

We have applied the user role to both Mobility Gateway and Campus Access point as per test.

From the requested output: I don't see any access-rule named to the Pre-Auth user role we applied..

Kr,

Koen

have you assign the preauth user role to mobility access point?

also paste the output of the "show access-rule <preauth role name> from the AP.

we have it at allow all, but we are not getting the CP being triggered, instead the client can just access any site.

yes it is basically the same  concept you can specific specific allow list or just use allow-all.

Just like Instant APs, even if you use allow-all for your pre-auth role, it will by default only allow basic services like DHCP/DNS and allow access to the host in your captive portal URL.

I suggest try the allow-all policy for simple straight forward deployments. but the other way also should work.

anyway what does the exact policy for your pre-auth role look like?

Hello,

In the meanwhile we have figured it out somewhat.

It turns out that the policy rule NAME you create in Central, is NOT going to be visible on the Mobility Gateway.

However, the rule itself ("any to any permit") IS visible under the role where it's assigned to.

I was focussed on the name of my rule "allow-any", but that name will never appear on the gateway it seems.

It's kind of confusing, but it seems to be OK now.

The command "show access-rule" helped us in doing more tests for finding a solution so thank you for that.

Soon I'll be publishing my next technote that will cover New Central configuration for tunnel WLANs.

But in the mean time when you send the VSA use role from ClearPass, you need to ensure that user role and its associated policies is configured and assigned correctly to the device type and to the scope.

Hello,

In the meanwhile we have tried configuring a new policy and attaching it to the role, and now it does work...

The policy I initially created was named "allow-all", while the new policy is named "allow-any", this one immediately works.

Either "allow-all" is a restricted name, or there is something wrong with the creation config push. Unassigning and assigning again doesn't help, I didn't try to re-create it, I'll just stick with the "allow-any" for now.

We do see the output correctly.

I'm just wondering for other roles, which are enforced by Clearpass. We send aruba-user-role "user", we see the client getting the role "user", but when I do "show rights user" , I don't see the allow-any policy which I assigned to the role and pushed on Mobility Gateway level. Not sure what we are missing here.

Thanks for the assistance.

Kr,

Koen

Koen, if you don't see the Pre-Auth role then you need to check the audit trail to see what has gone wrong, or you can delete the role and start again. you can always share some screenshots here as well.

Hello,

We have applied the user role to both Mobility Gateway and Campus Access point as per test.

From the requested output: I don't see any access-rule named to the Pre-Auth user role we applied..

Kr,

Koen

have you assign the preauth user role to mobility access point?

also paste the output of the "show access-rule <preauth role name> from the AP.

we have it at allow all, but we are not getting the CP being triggered, instead the client can just access any site.

yes it is basically the same  concept you can specific specific allow list or just use allow-all.

Just like Instant APs, even if you use allow-all for your pre-auth role, it will by default only allow basic services like DHCP/DNS and allow access to the host in your captive portal URL.

I suggest try the allow-all policy for simple straight forward deployments. but the other way also should work.

anyway what does the exact policy for your pre-auth role look like?

for the user role to be visible in the gateways, they need to be assigned to the device-group that the gateways are in.

Hello,

In the meanwhile we have figured it out somewhat.

It turns out that the policy rule NAME you create in Central, is NOT going to be visible on the Mobility Gateway.

However, the rule itself ("any to any permit") IS visible under the role where it's assigned to.

I was focussed on the name of my rule "allow-any", but that name will never appear on the gateway it seems.

It's kind of confusing, but it seems to be OK now.

The command "show access-rule" helped us in doing more tests for finding a solution so thank you for that.

Soon I'll be publishing my next technote that will cover New Central configuration for tunnel WLANs.

But in the mean time when you send the VSA use role from ClearPass, you need to ensure that user role and its associated policies is configured and assigned correctly to the device type and to the scope.

Hello,

In the meanwhile we have tried configuring a new policy and attaching it to the role, and now it does work...

The policy I initially created was named "allow-all", while the new policy is named "allow-any", this one immediately works.

Either "allow-all" is a restricted name, or there is something wrong with the creation config push. Unassigning and assigning again doesn't help, I didn't try to re-create it, I'll just stick with the "allow-any" for now.

We do see the output correctly.

I'm just wondering for other roles, which are enforced by Clearpass. We send aruba-user-role "user", we see the client getting the role "user", but when I do "show rights user" , I don't see the allow-any policy which I assigned to the role and pushed on Mobility Gateway level. Not sure what we are missing here.

Thanks for the assistance.

Kr,

Koen

Koen, if you don't see the Pre-Auth role then you need to check the audit trail to see what has gone wrong, or you can delete the role and start again. you can always share some screenshots here as well.

Hello,

We have applied the user role to both Mobility Gateway and Campus Access point as per test.

From the requested output: I don't see any access-rule named to the Pre-Auth user role we applied..

Kr,

Koen

have you assign the preauth user role to mobility access point?

also paste the output of the "show access-rule <preauth role name> from the AP.

we have it at allow all, but we are not getting the CP being triggered, instead the client can just access any site.

yes it is basically the same  concept you can specific specific allow list or just use allow-all.

Just like Instant APs, even if you use allow-all for your pre-auth role, it will by default only allow basic services like DHCP/DNS and allow access to the host in your captive portal URL.

I suggest try the allow-all policy for simple straight forward deployments. but the other way also should work.

anyway what does the exact policy for your pre-auth role look like?

I have my user roles applied to a Site Collection, and they are visible on the Mobility Gateways..

I mean what I don't see is the actual name of the security policy that I create, I only see a summary of all RULES under the role rights.

The system automatically creates an access-list named: sys_policy_user (for user-role name "user"), and all rules fall under this access-list name:

sys_policy_user
---------------
Priority  Source  Destination  Service  Application  Action  TimeRange  Log  Expired  Queue  TOS  8021P  Denylist  Mirror  DisScan  IPv4/6  Contract  Mark  Description
--------  ------  -----------  -------  -----------  ------  ---------  ---  -------  -----  ---  -----  --------  ------  -------  ------  --------  ----  -----------
1         any     any          any                   permit                           Low                                           4
2         any     any          any-v6                permit                           Low                                           6

Even tho in CNX these 2 specific rules fall under a policy I named "allow-any". In the Mobility Gateway you only see these rules under the automatically generated access-list: "sys_policy_user".

I find this a bit confusing.

for the user role to be visible in the gateways, they need to be assigned to the device-group that the gateways are in.

Hello,

In the meanwhile we have figured it out somewhat.

It turns out that the policy rule NAME you create in Central, is NOT going to be visible on the Mobility Gateway.

However, the rule itself ("any to any permit") IS visible under the role where it's assigned to.

I was focussed on the name of my rule "allow-any", but that name will never appear on the gateway it seems.

It's kind of confusing, but it seems to be OK now.

The command "show access-rule" helped us in doing more tests for finding a solution so thank you for that.

Soon I'll be publishing my next technote that will cover New Central configuration for tunnel WLANs.

But in the mean time when you send the VSA use role from ClearPass, you need to ensure that user role and its associated policies is configured and assigned correctly to the device type and to the scope.

Hello,

In the meanwhile we have tried configuring a new policy and attaching it to the role, and now it does work...

The policy I initially created was named "allow-all", while the new policy is named "allow-any", this one immediately works.

Either "allow-all" is a restricted name, or there is something wrong with the creation config push. Unassigning and assigning again doesn't help, I didn't try to re-create it, I'll just stick with the "allow-any" for now.

We do see the output correctly.

I'm just wondering for other roles, which are enforced by Clearpass. We send aruba-user-role "user", we see the client getting the role "user", but when I do "show rights user" , I don't see the allow-any policy which I assigned to the role and pushed on Mobility Gateway level. Not sure what we are missing here.

Thanks for the assistance.

Kr,

Koen

Koen, if you don't see the Pre-Auth role then you need to check the audit trail to see what has gone wrong, or you can delete the role and start again. you can always share some screenshots here as well.

Hello,

We have applied the user role to both Mobility Gateway and Campus Access point as per test.

From the requested output: I don't see any access-rule named to the Pre-Auth user role we applied..

Kr,

Koen

have you assign the preauth user role to mobility access point?

also paste the output of the "show access-rule <preauth role name> from the AP.

we have it at allow all, but we are not getting the CP being triggered, instead the client can just access any site.

yes it is basically the same  concept you can specific specific allow list or just use allow-all.

Just like Instant APs, even if you use allow-all for your pre-auth role, it will by default only allow basic services like DHCP/DNS and allow access to the host in your captive portal URL.

I suggest try the allow-all policy for simple straight forward deployments. but the other way also should work.

anyway what does the exact policy for your pre-auth role look like?
