I am configuring an SD-Branch with 9004s with the APs tunneling to the controllers. I wanted to see if I could use downloadable user roles on these devices but am stuck.

When trying to follow along with the techdocs, I see step 8, 9 below:

Step 8 says: The Access tab is displayed

Step 9 says: Turn on the Downloadable Role toggle switch to allow downloading of pre-existing user roles. The CPPM Settings table with Name, CPPM Username, and Actions columns related to the radius servers are displayed.

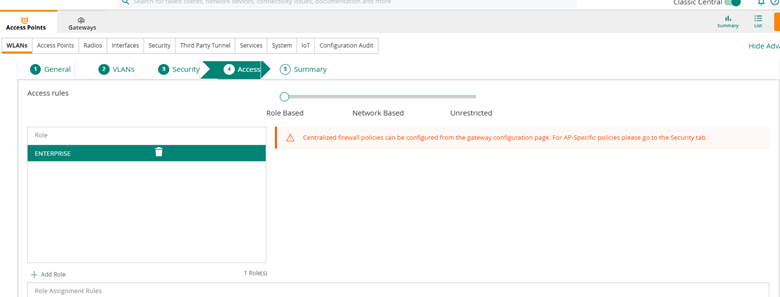

When I try to do this myself, there is no "Downloadable Role" toggle switch (see below)

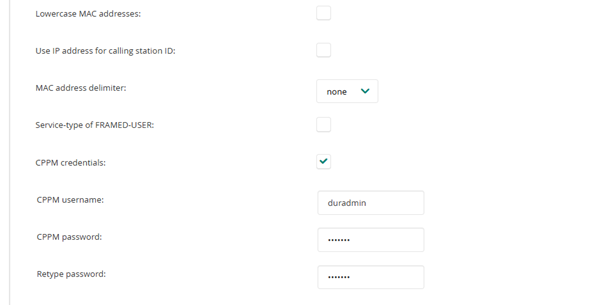

Ignoring this part, I went along and try to at least configure the RADIUS settings in Central

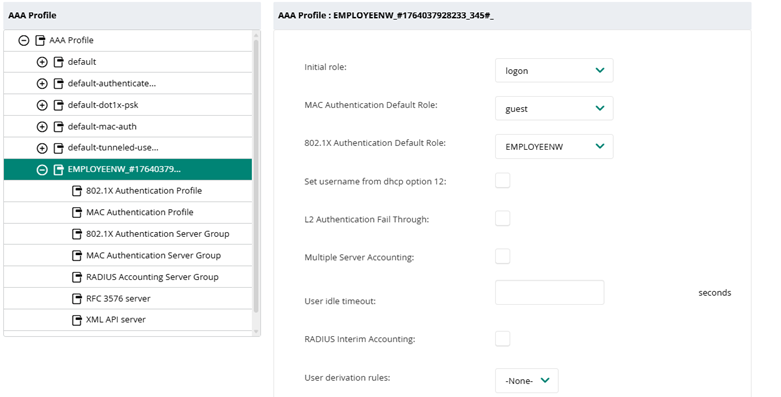

I think I can remember a few months back that there was a similar checkbox as I am familiar with in AOS8 called: "Download Role from CPPM", unfortunately, this box is nowhere to be found.

I cannot find anything in the documentation and the search option in Central isn't giving me anything either.

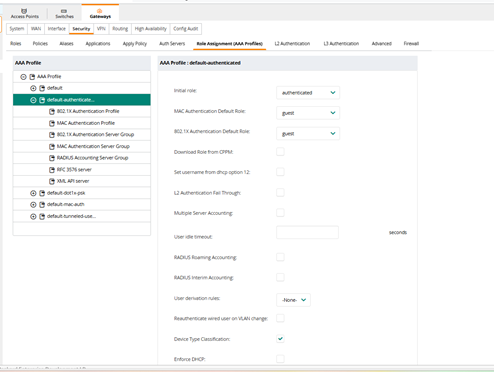

One interesting observation is that when I configure a gateway in the "default" group I do see the checkbox (see below)

It would be great if someone can guide me through the steps to activate the downloadable user role for SD-Branch.

downloadable user roles is only for Instant APs not AOS10 APs. the online help you references indicates that it is for IAPs but the wording can be improved.

I am configuring an SD-Branch with 9004s with the APs tunneling to the controllers. I wanted to see if I could use downloadable user roles on these devices but am stuck.

When trying to follow along with the techdocs, I see step 8, 9 below:

Step 8 says: The Access tab is displayed

Step 9 says: Turn on the Downloadable Role toggle switch to allow downloading of pre-existing user roles. The CPPM Settings table with Name, CPPM Username, and Actions columns related to the radius servers are displayed.

When I try to do this myself, there is no "Downloadable Role" toggle switch (see below)

Ignoring this part, I went along and try to at least configure the RADIUS settings in Central

I think I can remember a few months back that there was a similar checkbox as I am familiar with in AOS8 called: "Download Role from CPPM", unfortunately, this box is nowhere to be found.

I cannot find anything in the documentation and the search option in Central isn't giving me anything either.

One interesting observation is that when I configure a gateway in the "default" group I do see the checkbox (see below)

It would be great if someone can guide me through the steps to activate the downloadable user role for SD-Branch.

Hi Ariyap,

Thanks for clarifying this,  that helps a lot. I understand that with SD-Branch some policy enforcement happens at the branch, but it still feels like a gap that this isn't clearly documented. It would be really helpful if the documentation explicitly stated which capabilities (security, policy enforcement, segmentation, etc.) are managed centrally vs those that can be pushed through ClearPass for example. Unfortunately, this happens too often.

downloadable user roles is only for Instant APs not AOS10 APs. the online help you references indicates that it is for IAPs but the wording can be improved.
