Network Management

Hello

I'd like to check CPU usage and memory usage of EX3400 through PUTTY progrem

I successed connecting the switch torough PUTTY but failed to check CPU and Memmory.

I could chech diverse type of command when I connedted the Switch and typing "?"

there were over 30 commands. how can I find right command to check out CPU usage and memory usage?

thx in your advance

-------------------------------------------

you should be in the operational mode something like user@switch>

Then you have to use the command: show chassis routing-engine

------------------------------
Shpat | ACEP | ACMP | ACCP | ACDP
Just an Aruba enthusiast and contributor by cases
If you find my comment helpful, KUDOS are appreciated.
------------------------------

-------------------------------------------

Original Message:
Sent: Dec 05, 2025 12:58 AM
From: shpat
Subject: how to check Switch's CPU and Memory usage

you should be in the operational mode something like user@switch>

Then you have to use the command: show chassis routing-engine

------------------------------
Shpat | ACEP | ACMP | ACCP | ACDP
Just an Aruba enthusiast and contributor by cases
If you find my comment helpful, KUDOS are appreciated.
------------------------------

try doing an Exit and then check if you can write show chassis routing-engine

------------------------------
Shpat | ACEP | ACMP | ACCP | ACDP
Just an Aruba enthusiast and contributor by cases
If you find my comment helpful, KUDOS are appreciated.
------------------------------

Original Message:
Sent: Dec 05, 2025 01:43 AM
From: KWON
Subject: how to check Switch's CPU and Memory usage

I really appreciate your comment.

What is "the operational mode something like user@switch>" ?

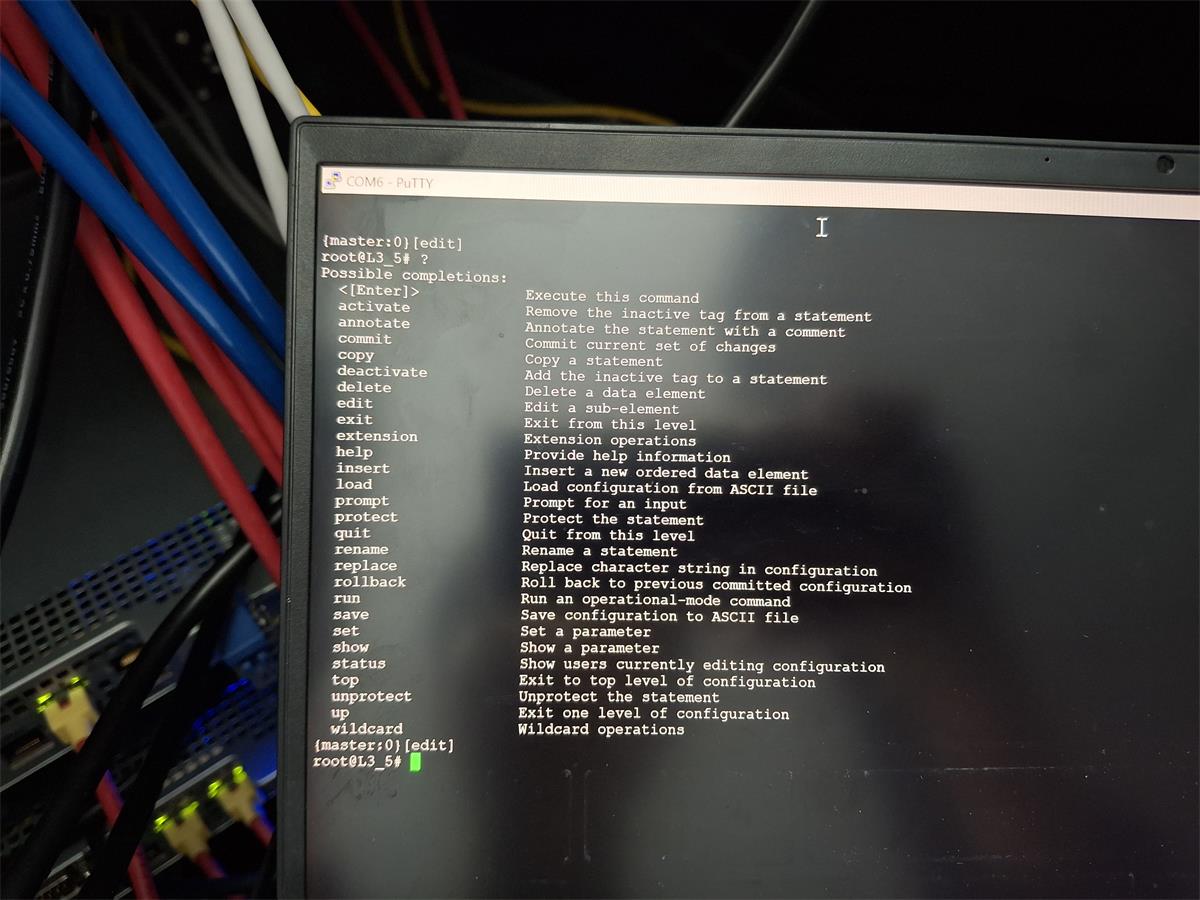

I accessed the switch through PUTTY program using console port and this is the picture.

I typed many command including "show" and "status" but there weren't CPU or Memery usage.

can I get those status if I would type  show chassis routing-engine in this screen???

user@switch>
show chassis routing-engine
show system processes summary
show system processes extensive
You can also try this
show system memory

-------------------------------------------

Original Message:
Sent: Dec 05, 2025 01:43 AM
From: KWON
Subject: how to check Switch's CPU and Memory usage

I really appreciate your comment.

What is "the operational mode something like user@switch>" ?

I accessed the switch through PUTTY program using console port and this is the picture.

I typed many command including "show" and "status" but there weren't CPU or Memery usage.

can I get those status if I would type  show chassis routing-engine in this screen???

Thx! i'll try this commands later!!

thx very much!

-------------------------------------------

Original Message:
Sent: Dec 05, 2025 07:01 AM
From: muhittin
Subject: how to check Switch's CPU and Memory usage

user@switch>
show chassis routing-engine
show system processes summary
show system processes extensive
You can also try this
show system memory

Original Message:
Sent: Dec 05, 2025 01:43 AM
From: KWON
Subject: how to check Switch's CPU and Memory usage

I really appreciate your comment.

What is "the operational mode something like user@switch>" ?

I accessed the switch through PUTTY program using console port and this is the picture.

I typed many command including "show" and "status" but there weren't CPU or Memery usage.

can I get those status if I would type  show chassis routing-engine in this screen???
