IF-MAP AOS8 question

This thread has been viewed 13 times

  • 1.  IF-MAP AOS8 question

    Posted Apr 04, 2025 10:37 AM
    Edited by mvanoverbeek Apr 04, 2025 04:08 PM

    This will be my third question on the topic IF-MAP, mostly because it is hard to find a lot about this topic.

    First some observations

    Configuration on AOS10:

    • Add PEM root certificate to Aruba central
    • Load this certificate as a VPN cert

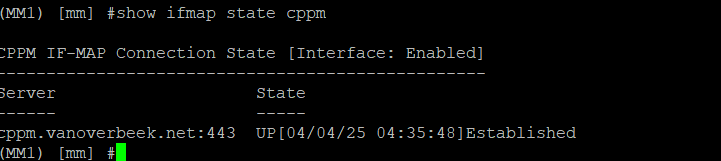

    • Configure ifmap at the CLI level of the gateway

    On AOS8, I used the following configuration:

    • Add PEM root certificate as trusted CA at the Mobility Conductor level
    • Configure ifmap at the CLI level of the conductor

    Is that the right way to configure ifmap? Should the conductor be sending the metadata to ClearPass instead of the controller?

    I also noticed that this certificate loaded at the Conductor level is also sufficient for using Dowloadable user roles.

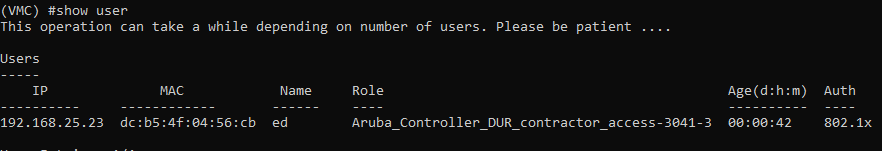

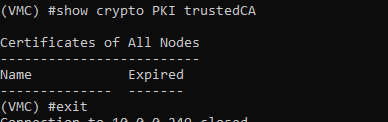

    As you can see below there is no TrustedCA at the user level

    But downloadable user roles are working



    ------------------------------
    Martijn van Overbeek
    Architect, Netcraftsmen a BlueAlly Company
    ------------------------------
