Subject: Authentication Issue After Successful Onboarding – Devices Still Attempting PEAP Instead of EAP-TLS

Issue Description

We are experiencing an authentication issue affecting multiple users after completing the Aruba onboarding process successfully.

The onboarding process finishes without errors, and certificates appear to be deployed correctly to the endpoints. However, after onboarding is completed, affected devices continue failing authentication attempts.

Our investigation indicates that although the expected authentication method should be EAP-TLS, the authentication logs and client behavior suggest that the devices are still attempting authentication using EAP-PEAP.

Observed Behavior

• User successfully completes onboarding

• Certificate installation appears successful

• Device attempts to connect to the corporate SSID

• Authentication fails

• Authentication method appears as EAP-PEAP instead of EAP-TLS

Expected Behavior
After successful onboarding, the device should authenticate using EAP-TLS with the installed client certificate.

Troubleshooting Performed

• Re-ran onboarding process multiple times

• Reinstalled onboarding profile

• Verified certificate presence on the endpoint

• Confirmed SSID configuration is intended for EAP-TLS

• Verified that monitor mode / 802.11 capability is available

• Authentication issue persists consistently

Suspected Cause
It appears that the onboarding profile may not be fully replacing the previous wireless authentication configuration, or the endpoint is retaining an older PEAP-based profile/policy and continues attempting authentication with PEAP instead of switching to EAP-TLS.

Request for Support
Please assist with:

1. Reviewing the onboarding profile deployment

2. Confirming whether any Aruba policy or ClearPass configuration could force fallback to PEAP

3. Identifying why endpoints continue advertising/attempting PEAP after successful EAP-TLS onboarding

4. Providing guidance on how to force the endpoint to use EAP-TLS exclusively

This issue is affecting multiple users.

-------------------------------------------

1. Reviewing the onboarding profile deployment

Which onboarding method is being used? Is it ClearPass Onboard? Check directly on the endpoint to see if EAP-TLS is actually configured as the authentication method in the Wi-Fi profile.

2. Confirming whether any Aruba policy or ClearPass configuration could force fallback to PEAP

ClearPass, like any other RADIUS server, cannot influence the authentication method used by the endpoint or force a fallback to a different authentication method. During authentication, ClearPass sequentially sends all authentication methods configured in the service to the NAD until the endpoint selects the method configured on it. If the endpoint does not support any of the methods configured in the service, authentication is aborted-with a message stating that the endpoint does not support any of the methods used.

3. Identifying why endpoints continue advertising/attempting PEAP after successful EAP-TLS onboarding.

The endpoint uses the authentication method configured in its Wi-Fi profile. Check the endpoint configuration.

4. Providing guidance on how to force the endpoint to use EAP-TLS exclusively

In the service, you can only select [EAP TLS] as the authentication method. As a result, endpoints that use other authentication methods will not be able to authenticate.

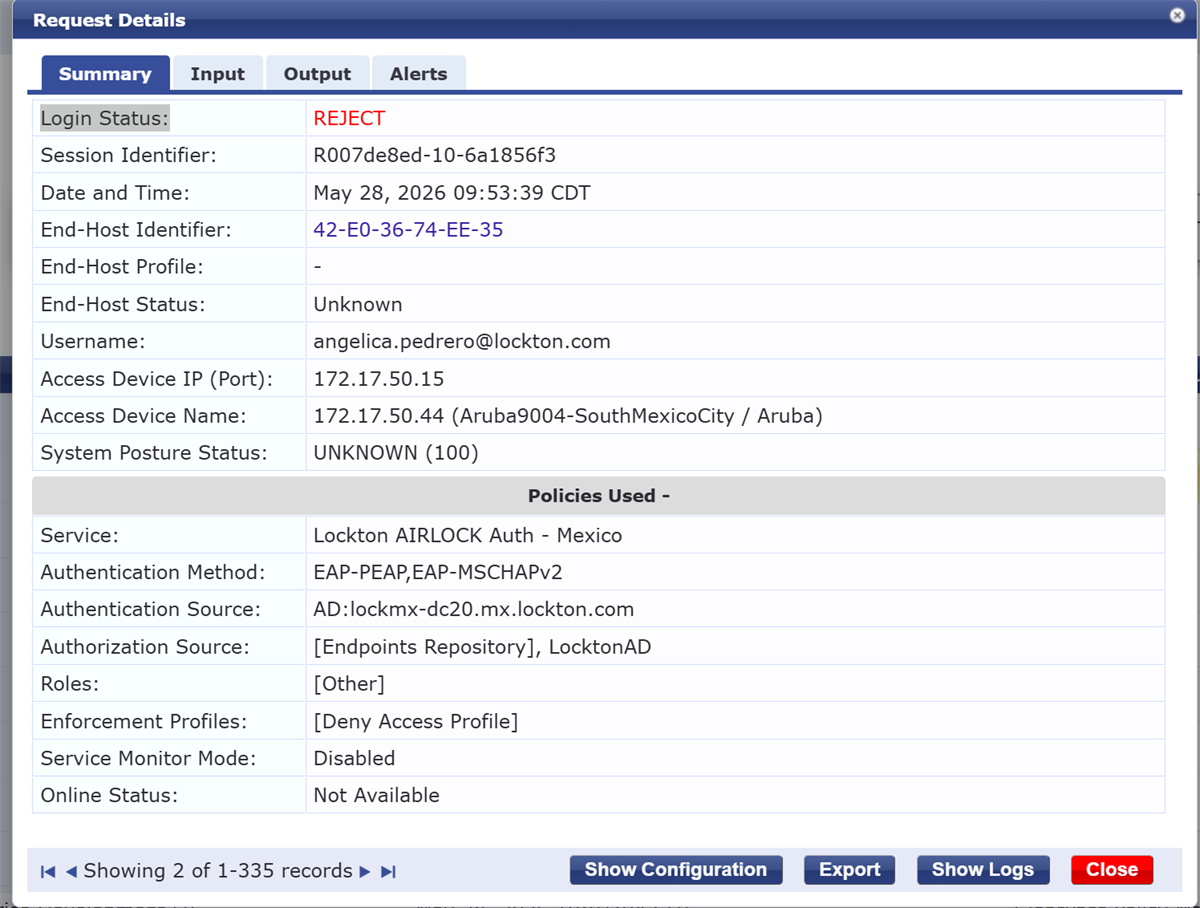

Please post the Alarm Section for a Rejected Authentication. In the Summary Section, only the [Other] role is assigned. This happens when no condition matches in the role mapping; in that case, ClearPass uses the default role. This may be the cause of the rejections, rather than the use of EAP-PEAP.

------------------------------
Regards,

Waldemar
ACCX # 1377, ACEP, ACX - Network Security
If you find my answer useful, consider giving kudos and/or mark as solution
------------------------------
