Hello,

i am trying to prevent mac spoofing using the conflict feature in Clearpass, but i either make it block every connection or allow all.

Can anyone please give me an example of how to configure it

Thanks

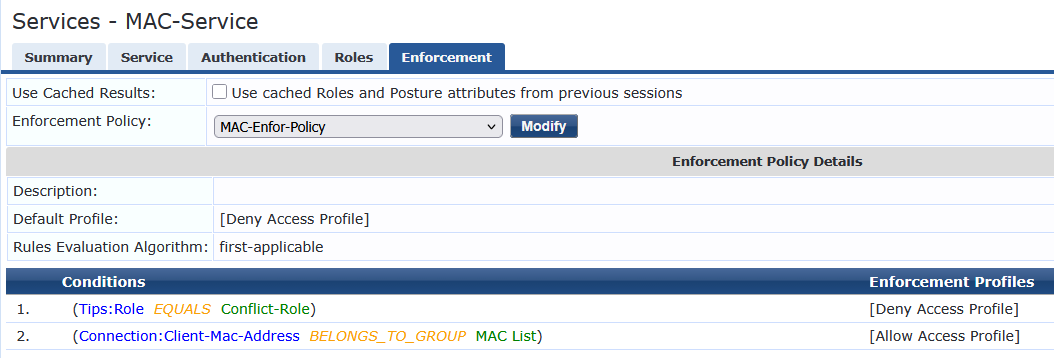

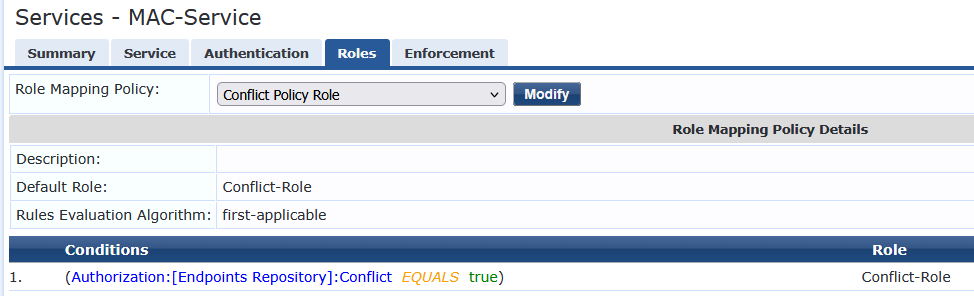

Here is the config that i configured, but now even legitimate mac authentication from the same device as before are being blocked

you can use the Conflict attribute and put the devices in a "conflict-role" as you are doing but put them on a VLAN  with limited access so you can investigate them.

------------------------------
If my post was useful accept solution and/or give kudos.
Any opinions expressed here are solely my own and not necessarily that of HPE or Aruba.
------------------------------

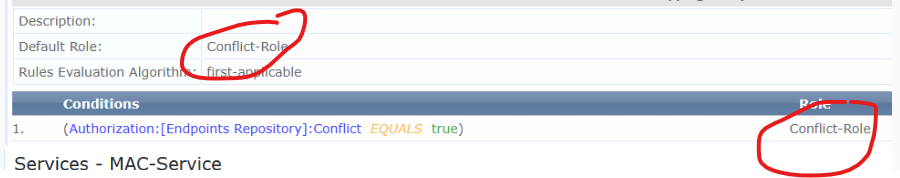

You can't assign the Conflict-Role as default role in the role mapping policy.

With this condition you states that if Conflict=True assign the role Conflict-Role, if not true assign the Conflict-Role.

To solve this you have to change the default role to something else, maybe [Other].

------------------------------
Best Regards
Jonas Hammarbäck
MVP Guru, ACEX, ACDX #1600, ACCX #1335, ACX-Network Security
Aranya AB
If you find my answer useful, consider giving kudos and/or mark as solution
------------------------------

Thanks Jonas, i did noticed and change it just after i post this thread, i have other question please, how can i profile devices other than DHCP, one of our customers for some reason deoes not have DHCP, so we cant rely on DHCP fingerprints for profiling, is there any other way to profile devices ?

Original Message:
Sent: May 26, 2025 10:17 AM
From: jonas.hammarback
Subject: Need help setting up Mac spoofing prevention.

You can't assign the Conflict-Role as default role in the role mapping policy.

With this condition you states that if Conflict=True assign the role Conflict-Role, if not true assign the Conflict-Role.

To solve this you have to change the default role to something else, maybe [Other].

------------------------------
Best Regards
Jonas Hammarbäck
MVP Guru, ACEX, ACDX #1600, ACCX #1335, ACX-Network Security
Aranya AB
If you find my answer useful, consider giving kudos and/or mark as solution
------------------------------

Yes, there are a number of other technics for profiling devices. This, rater old but still valid, document describes them:

https://support.hpe.com/hpesc/public/docDisplay?docLocale=en_US&docId=a00100323en_us

In general DHCP is the easiest way to implement and what I have been using in almost every case.

If you have integration with Intune you can benefit from the information in the Intune database as well.

------------------------------
Best Regards
Jonas Hammarbäck
MVP Guru, ACEX, ACDX #1600, ACCX #1335, ACX-Network Security
Aranya AB
If you find my answer useful, consider giving kudos and/or mark as solution
------------------------------

Original Message:
Sent: May 26, 2025 10:25 AM
From: zouhsaine
Subject: Need help setting up Mac spoofing prevention.

Thanks Jonas, i did noticed and change it just after i post this thread, i have other question please, how can i profile devices other than DHCP, one of our customers for some reason deoes not have DHCP, so we cant rely on DHCP fingerprints for profiling, is there any other way to profile devices ?

Original Message:
Sent: May 26, 2025 10:17 AM
From: jonas.hammarback
Subject: Need help setting up Mac spoofing prevention.

You can't assign the Conflict-Role as default role in the role mapping policy.

With this condition you states that if Conflict=True assign the role Conflict-Role, if not true assign the Conflict-Role.

To solve this you have to change the default role to something else, maybe [Other].

------------------------------
Best Regards
Jonas Hammarbäck
MVP Guru, ACEX, ACDX #1600, ACCX #1335, ACX-Network Security
Aranya AB
If you find my answer useful, consider giving kudos and/or mark as solution

Use an external SPAN-based profiling tool. Like Ordr, Medigate, etc. Aruba Central managed switches also offer native profiling that integrates with ClearPass.
