  • 1.  New Central and source ports in ACLs

    Posted Apr 15, 2026 06:04 AM

    Good day everyone!

    I have been struggling with this for a couple of hours. Our customer wants to apply a restrictive control plane policy that among other things needs to allow reply packets to HTTPS connections.

    In Classic Central we did this via Multiedit and configuring an ACE for which the source and destination were "any eq 443 any".

    In New Central we don't have Multiedit and the ACL GUI only allows us to select source, destination and "protocol and port", which is always applied to the destination.

    Is there any way to do this in New Central?



    -------------------------------------------


  • 2.  RE: New Central and source ports in ACLs

    Posted Apr 30, 2026 03:54 AM

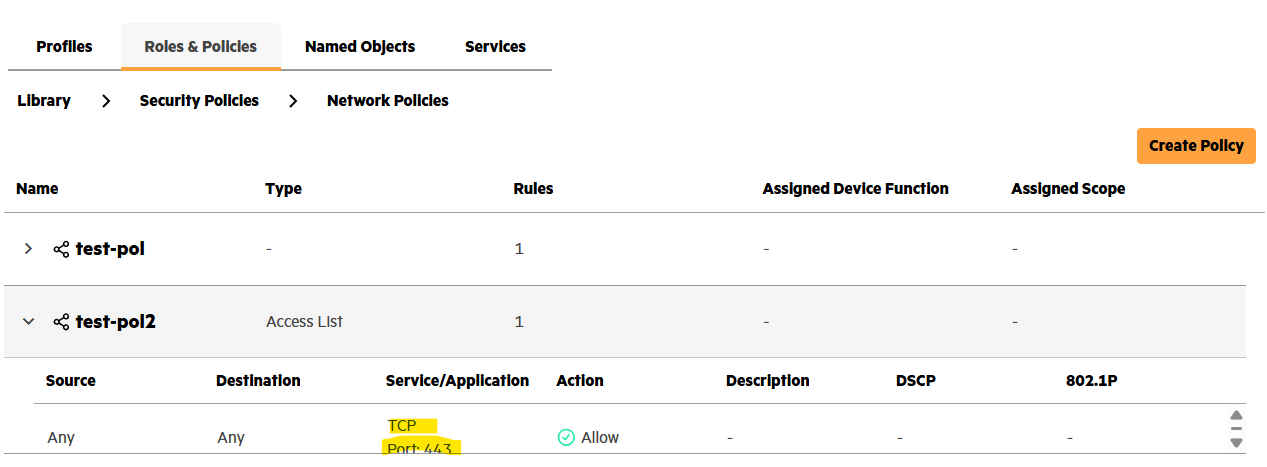

    do you mean something like this ?



    ------------------------------
    If my post was useful accept solution and/or give kudos.
    Any opinions expressed here are solely my own and not necessarily that of HPE or Aruba.
    ------------------------------



  • 3.  RE: New Central and source ports in ACLs

    Posted 26 days ago
    Edited by JaimeVS 26 days ago

    Hi. Sorry for the delay. If I'm not mistaken, that screenshot you show there is filtering the destination, not the source port, isn't that correct?

    -------------------------------------------

    Original Message


  • 4.  RE: New Central and source ports in ACLs

    Posted 25 days ago

    Can you provide the product line this is going to. It looks like API's can probably push the source port for switches.

    -------------------------------------------

    Original Message


  • 5.  RE: New Central and source ports in ACLs

    Posted 21 days ago

    Yes, it's possible via the API only at this moment. Hereby an example

    #policy name is source-port in this example

URI: {{baseUrl}}/network-config/v1alpha1/policies/source-port
{
    "name": "source-port",
    "type": "POLICY_NETWORK_ACL",
    "dsf-enable": false,
    "association": "ASSOCIATION_INTERFACE",
    "description": "source-port",
    "security-policy": {
        "type": "SECURITY_POLICY_TYPE_DEFAULT",
        "policy-rule": [
            {
                "position": 1,
                "condition": {
                    "rule-type": "RULE_TCP",
                    "transport-fields": {
                        "source-port": {
                            "operator": "COMPARISON_EQ",
                            "min": 443
                        },
                        "established": false
                    },
                    "source": {
                        "type": "ADDRESS_ANY"
                    },
                    "destination": {
                        "type": "ADDRESS_ANY"
                    },
                    "ip-header": {
                        "protocol": "IP_TCP"
                    }
                },
                "action": {
                    "type": "ACTION_ALLOW",
                    "secondary-actions": {
                        "log": false,
                        "count": false
                    }
                }
            }
        ]
    }
}


    ------------------------------
    Willem Bargeman
    Systems Engineer Aruba
    ACEX #125
    ------------------------------

    Original Message
