Hi, I have an OfficeConnect 1950 that I am trying to configure port mirroring for.

Currently I have configured mirroring for port 48 for North/South to port 47. Port 47 is configured as an access port on VLAN 1 and 48 is a Hybrid Port for Data VLAN 1 and Voice LAN 10. As a test, I did configure both ports as hybrid, and both ports as access with the same result, the Mirror shows as status incomplete.

Both connections are GB Ethernet. Any help would be appreciated.

Hi,

Please refer HPE 1950 switch user guide pg.110 Port mirroring configuration.

https://support.hpe.com/hpesc/public/docDisplay?docId=a00090286en_us

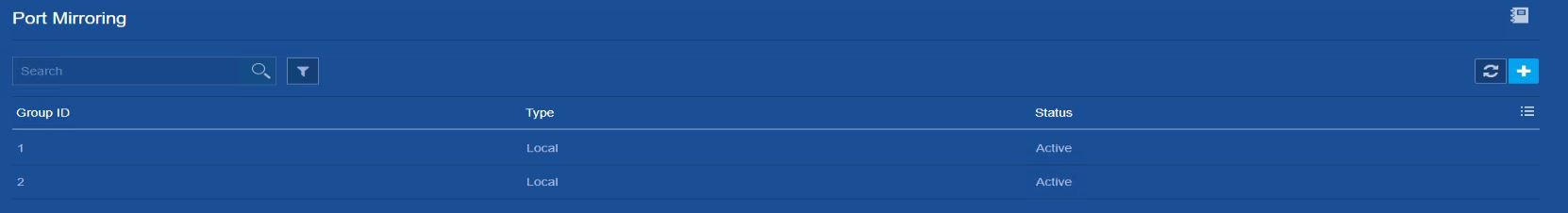

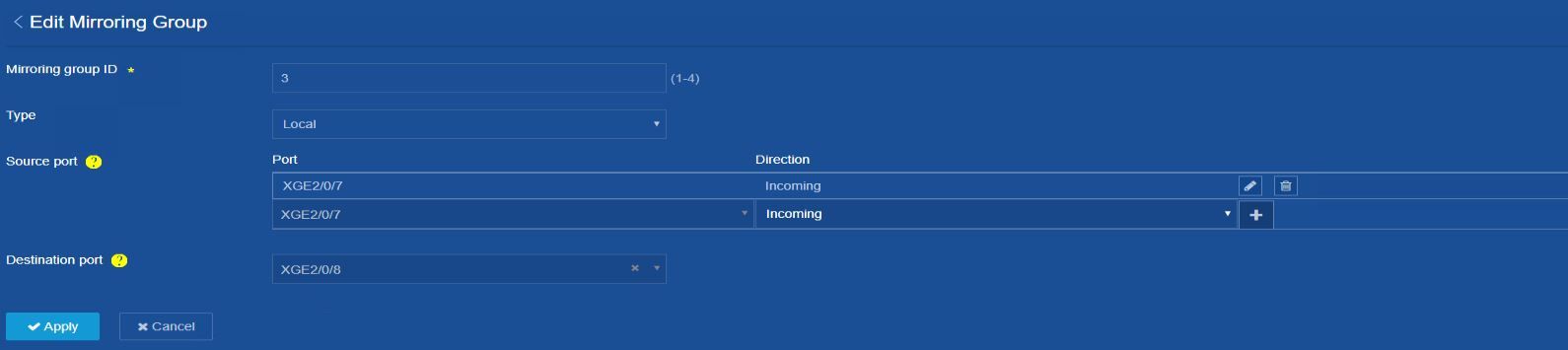

Seems you need to click on '+'  and add the port again.



Thanks!

Here, mirroring would mean the enhanced image viewer, or the optical rotation ?
Dextro-/leavo rotation ?
The projector, if connected on screen itself shows mirror image ?
