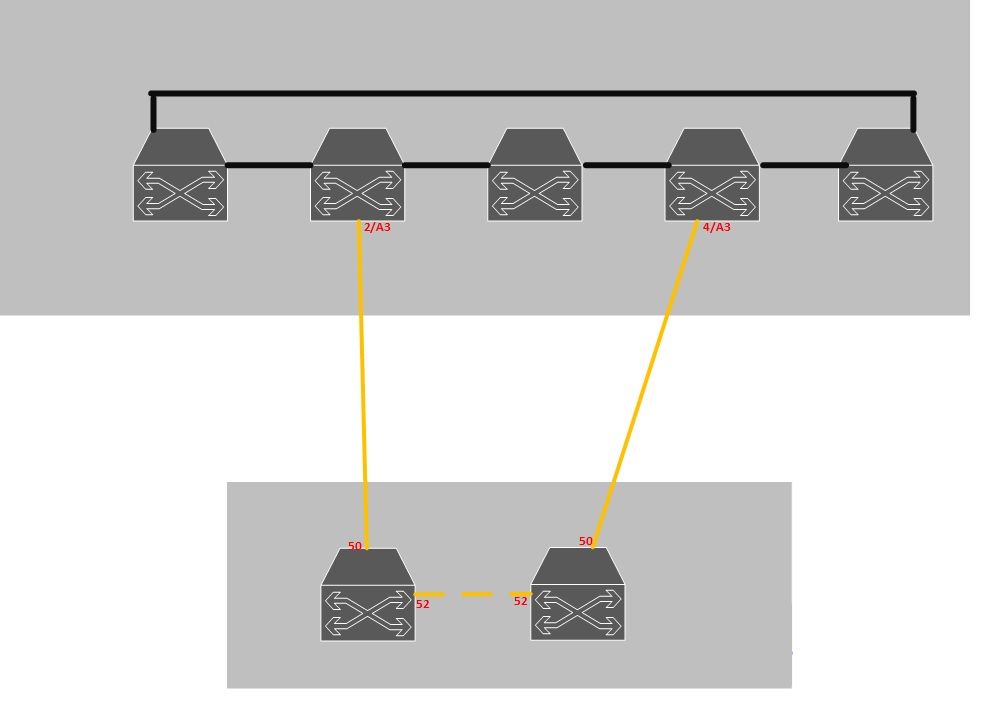

We have a 5 Stack-Switches (Aruba 2930M) where all connections are centralized (even if don't do routing). In the other side a couple of Aruba-2930F. Check the picture to see the ports connection:

Here the configurations:

Stack Aruba 2930M:

***********************

trunk 2/A3 trk11 lacp

trunk 4/A3 trk12 lacp

spanning-tree Trk11 priority 4

spanning-tree Trk12 priority 4

spanning-tree mode rapid-pvst

spanning-tree priority 4

Aruba-2930F (A/B):

***********************

trunk 49-50 trk1 lacp
trunk 51-52 trk2 lacp

spanning-tree Trk1 priority 4
spanning-tree Trk2 priority 5
spanning-tree mode rapid-pvst
spanning-tree priority 6

As you can see both Aruba-2930F are connected to Aruba 2930M by the port 50 and they are UP AND RUNNING. When we disconnect one of those ports 50, what I hope is that port 52 is activated, but this doesn't happen ... Since it is still blocked by LACP ...

Any idea?

Many thanks in advance.

Hello

Can i ask first why you are using trunks with LACP, only for 1 port? The purpose of trunks is to bundle multiple ports together as 1 logical link.

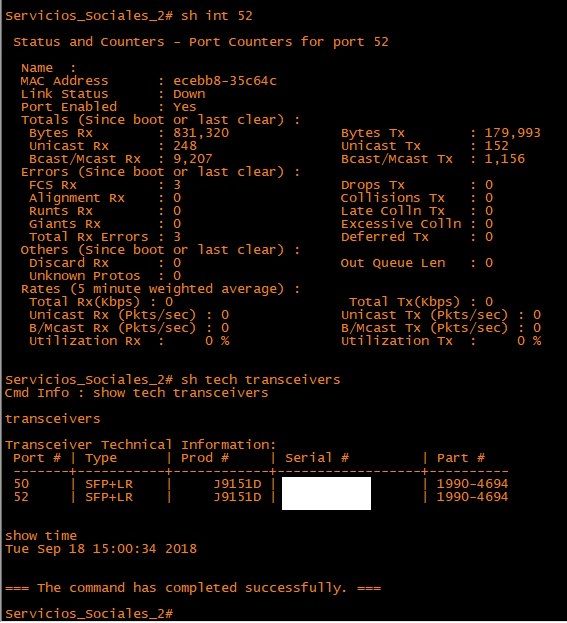

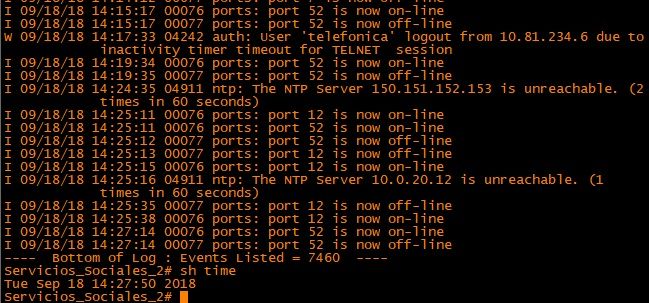

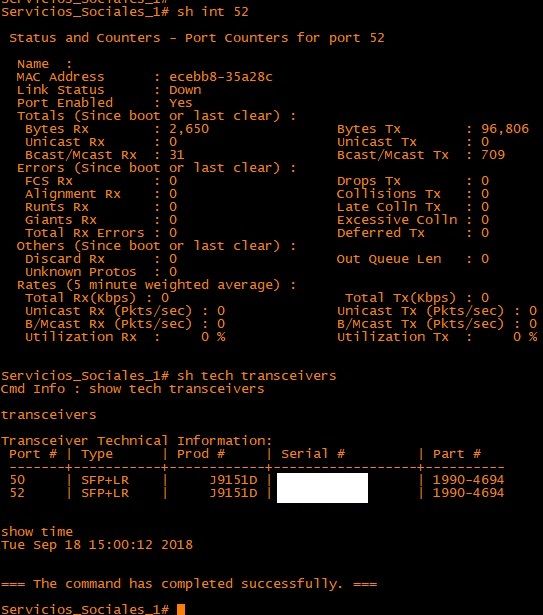

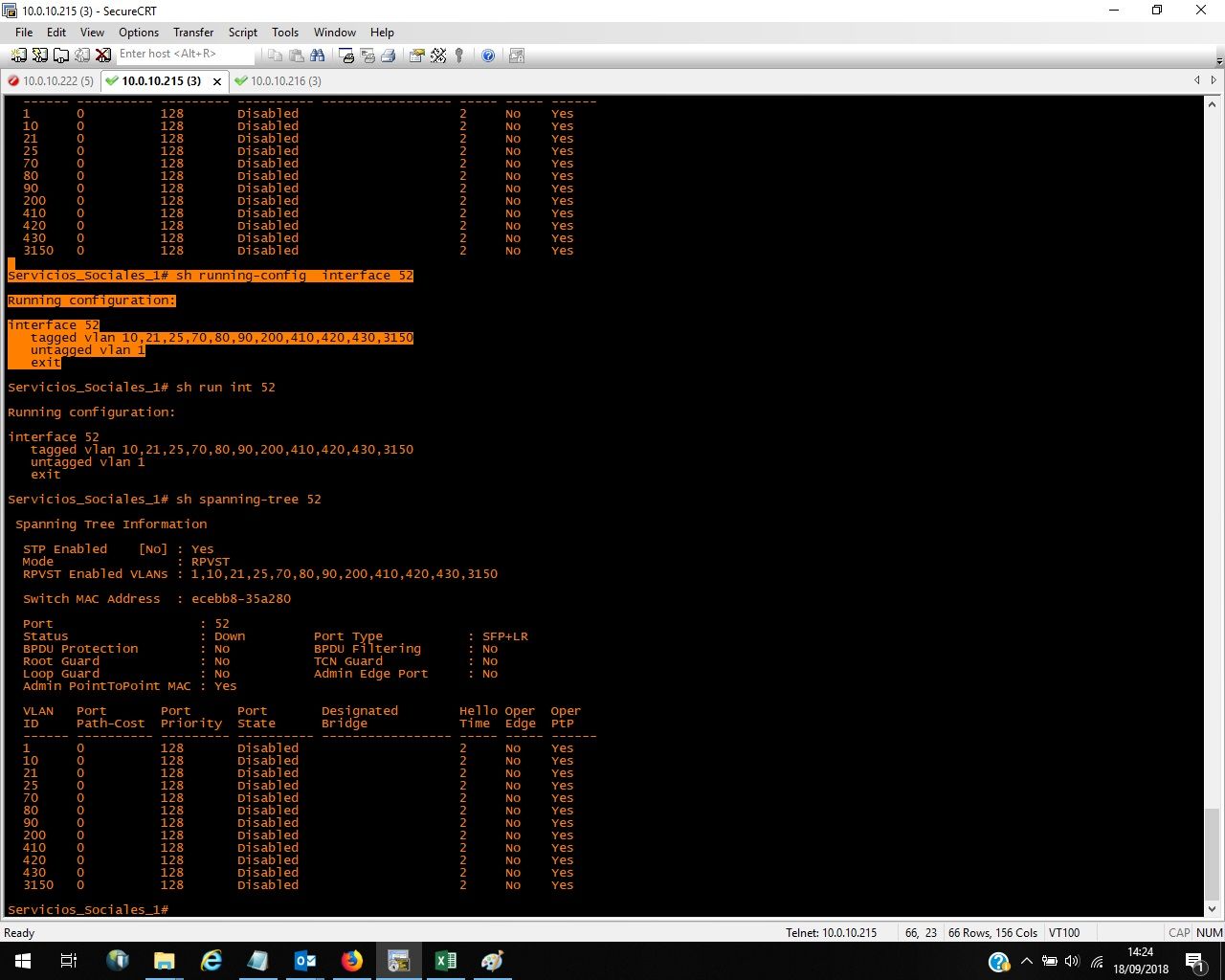

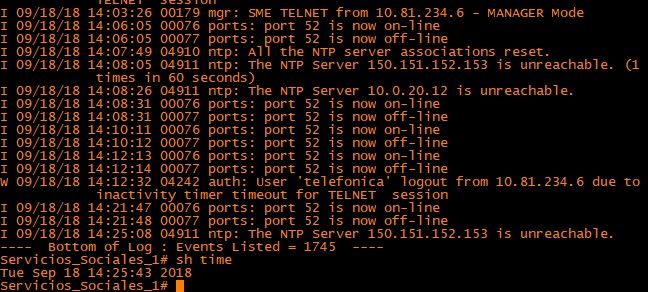

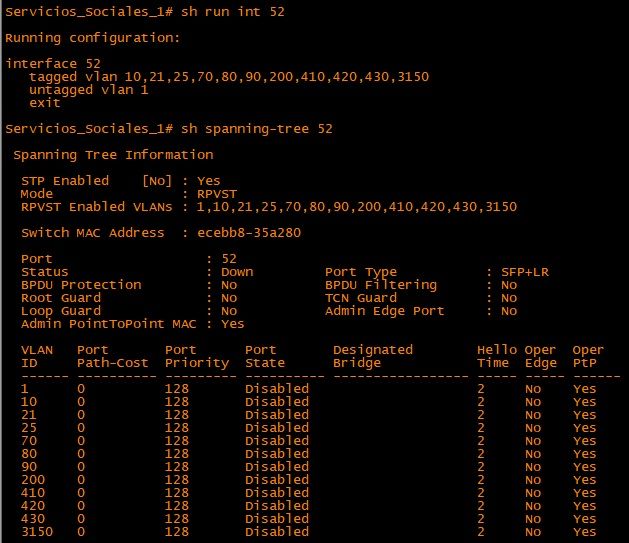

Then can you execute following show command on all the switches: show spanning-tree. Because normally their should be already blocked port somewhere. If we see a blocked port, we know spanning-tree is well configured.

Also if you don't like to work with spanning-tree, you can try to stack those 2 2930F switches with VSF.

Hi HP-Browniee... Thanx 4 answer,,,,

What happens when you disable LACP on those ports?

int 52
no lacp

Is it possible to show the full config of your switches? show run

I'm not in the same place as the Switches ... I'm 600 kilometers away and in the case that the "NO LACP"command  leaves me out of the Switches I would be in trouble LOL

The configurations of SW1 and SW2 are identical (except the IPs ;)):. Both configs are here:

; JL256A Configuration Editor; Created on release #WC.16.05.0007
; Ver #12:08.1d.9b.3f.bf.bb.ef.7c.59.fc.6b.fb.9f.fc.ff.ff.37.ef:ba
hostname "Servicios_Sociales_2"
module 1 type jl256a
console baud-rate 9600
console idle-timeout 600
console idle-timeout serial-usb 600
console max-sessions 5
trunk 49-50 trk1 lacp
trunk 51-52 trk2 lacp
mac-age-time 60
no port-security 1 eavesdrop-prevention
port-security 1 learn-mode limited-continuous
port-security 1 address-limit 3
port-security 1 action send-alarm
no port-security 2 eavesdrop-prevention
port-security 2 learn-mode limited-continuous
port-security 2 address-limit 3
port-security 2 action send-alarm
no port-security 3 eavesdrop-prevention
port-security 3 learn-mode limited-continuous
port-security 3 address-limit 3
port-security 3 action send-alarm
no port-security 4 eavesdrop-prevention
port-security 4 learn-mode limited-continuous
port-security 4 address-limit 3
port-security 4 action send-alarm
no port-security 5 eavesdrop-prevention
port-security 5 learn-mode limited-continuous
port-security 5 address-limit 3
port-security 5 action send-alarm
no port-security 6 eavesdrop-prevention
port-security 6 learn-mode limited-continuous
port-security 6 address-limit 3
port-security 6 action send-alarm
no port-security 7 eavesdrop-prevention
port-security 7 learn-mode limited-continuous
port-security 7 address-limit 3
port-security 7 action send-alarm
no port-security 8 eavesdrop-prevention
port-security 8 learn-mode limited-continuous
port-security 8 address-limit 3
port-security 8 action send-alarm
no port-security 9 eavesdrop-prevention
port-security 9 learn-mode limited-continuous
port-security 9 address-limit 3
port-security 9 action send-alarm
no port-security 10 eavesdrop-prevention
port-security 10 learn-mode limited-continuous
port-security 10 address-limit 3
port-security 10 action send-alarm
no port-security 11 eavesdrop-prevention
port-security 11 learn-mode limited-continuous
port-security 11 address-limit 3
port-security 11 action send-alarm
no port-security 12 eavesdrop-prevention
port-security 12 learn-mode limited-continuous
port-security 12 address-limit 3
port-security 12 action send-alarm
no port-security 13 eavesdrop-prevention
port-security 13 learn-mode limited-continuous
port-security 13 address-limit 3
port-security 13 action send-alarm
no port-security 14 eavesdrop-prevention
port-security 14 learn-mode limited-continuous
port-security 14 address-limit 3
port-security 14 action send-alarm
no port-security 15 eavesdrop-prevention
port-security 15 learn-mode limited-continuous
port-security 15 address-limit 3
port-security 15 action send-alarm
no port-security 16 eavesdrop-prevention
port-security 16 learn-mode limited-continuous
port-security 16 address-limit 3
port-security 16 action send-alarm
no port-security 17 eavesdrop-prevention
port-security 17 learn-mode limited-continuous
port-security 17 address-limit 3
port-security 17 action send-alarm
no port-security 18 eavesdrop-prevention
port-security 18 learn-mode limited-continuous
port-security 18 address-limit 3
port-security 18 action send-alarm
no port-security 19 eavesdrop-prevention
port-security 19 learn-mode limited-continuous
port-security 19 address-limit 3
port-security 19 action send-alarm
no port-security 20 eavesdrop-prevention
port-security 20 learn-mode limited-continuous
port-security 20 address-limit 3
port-security 20 action send-alarm
no port-security 21 eavesdrop-prevention
port-security 21 learn-mode limited-continuous
port-security 21 address-limit 3
port-security 21 action send-alarm
no port-security 22 eavesdrop-prevention
port-security 22 learn-mode limited-continuous
port-security 22 address-limit 3
port-security 22 action send-alarm
no port-security 23 eavesdrop-prevention
port-security 23 learn-mode limited-continuous
port-security 23 address-limit 3
port-security 23 action send-alarm
no port-security 24 eavesdrop-prevention
port-security 24 learn-mode limited-continuous
port-security 24 address-limit 3
port-security 24 action send-alarm
no port-security 25 eavesdrop-prevention
port-security 25 learn-mode limited-continuous
port-security 25 address-limit 3
port-security 25 action send-alarm
no port-security 26 eavesdrop-prevention
port-security 26 learn-mode limited-continuous
port-security 26 address-limit 3
port-security 26 action send-alarm
no port-security 27 eavesdrop-prevention
port-security 27 learn-mode limited-continuous
port-security 27 address-limit 3
port-security 27 action send-alarm
no port-security 28 eavesdrop-prevention
port-security 28 learn-mode limited-continuous
port-security 28 address-limit 3
port-security 28 action send-alarm
no port-security 29 eavesdrop-prevention
port-security 29 learn-mode limited-continuous
port-security 29 address-limit 3
port-security 29 action send-alarm
no port-security 30 eavesdrop-prevention
port-security 30 learn-mode limited-continuous
port-security 30 address-limit 3
port-security 30 action send-alarm
no port-security 31 eavesdrop-prevention
port-security 31 learn-mode limited-continuous
port-security 31 address-limit 3
port-security 31 action send-alarm
no port-security 32 eavesdrop-prevention
port-security 32 learn-mode limited-continuous
port-security 32 address-limit 3
port-security 32 action send-alarm
no port-security 33 eavesdrop-prevention
port-security 33 learn-mode limited-continuous
port-security 33 address-limit 3
port-security 33 action send-alarm
no port-security 34 eavesdrop-prevention
port-security 34 learn-mode limited-continuous
port-security 34 address-limit 3
port-security 34 action send-alarm
no port-security 35 eavesdrop-prevention
port-security 35 learn-mode limited-continuous
port-security 35 address-limit 3
port-security 35 action send-alarm
no port-security 36 eavesdrop-prevention
port-security 36 learn-mode limited-continuous
port-security 36 address-limit 3
port-security 36 action send-alarm
no port-security 37 eavesdrop-prevention
port-security 37 learn-mode limited-continuous
port-security 37 address-limit 3
port-security 37 action send-alarm
no port-security 38 eavesdrop-prevention
port-security 38 learn-mode limited-continuous
port-security 38 address-limit 3
port-security 38 action send-alarm
no port-security 39 eavesdrop-prevention
port-security 39 learn-mode limited-continuous
port-security 39 address-limit 3
port-security 39 action send-alarm
no port-security 40 eavesdrop-prevention
port-security 40 learn-mode limited-continuous
port-security 40 address-limit 3
port-security 40 action send-alarm
no port-security 41 eavesdrop-prevention
port-security 41 learn-mode limited-continuous
port-security 41 address-limit 3
port-security 41 action send-alarm
no port-security 42 eavesdrop-prevention
port-security 42 learn-mode limited-continuous
port-security 42 address-limit 3
port-security 42 action send-alarm
no port-security 43 eavesdrop-prevention
port-security 43 learn-mode limited-continuous
port-security 43 address-limit 3
port-security 43 action send-alarm
qos dscp-map 8 priority 0
qos dscp-map 9 priority 0
qos dscp-map 10 priority 0
qos dscp-map 11 priority 0
qos dscp-map 12 priority 0
qos dscp-map 13 priority 0
qos dscp-map 14 priority 0
qos dscp-map 15 priority 0
qos dscp-map 16 priority 0
qos dscp-map 17 priority 0
qos dscp-map 19 priority 0
qos dscp-map 21 priority 0
qos dscp-map 22 priority 0
qos dscp-map 23 priority 0
qos dscp-map 24 priority 0
qos dscp-map 25 priority 0
qos dscp-map 26 priority 0
qos dscp-map 27 priority 0
qos dscp-map 28 priority 0
qos dscp-map 29 priority 0
qos dscp-map 30 priority 0
qos dscp-map 31 priority 0
qos dscp-map 32 priority 0
qos dscp-map 33 priority 0
qos dscp-map 34 priority 0
qos dscp-map 35 priority 0
qos dscp-map 36 priority 0
qos dscp-map 37 priority 0
qos dscp-map 38 priority 0
qos dscp-map 39 priority 0
qos dscp-map 41 priority 0
qos dscp-map 42 priority 0
qos dscp-map 43 priority 0
qos dscp-map 44 priority 0
qos dscp-map 45 priority 0
qos dscp-map 47 priority 0
qos dscp-map 48 priority 0
qos dscp-map 49 priority 0
qos dscp-map 50 priority 0
qos dscp-map 51 priority 0
qos dscp-map 52 priority 0
qos dscp-map 53 priority 0
qos dscp-map 54 priority 0
qos dscp-map 55 priority 0
qos tcp-port ipv4 20 dscp 56
qos tcp-port ipv4 21 dscp 56
qos tcp-port ipv4 23 dscp 56
qos tcp-port ipv4 22 dscp 56
qos udp-port ipv4 161 dscp 56
qos udp-port ipv4 162 dscp 56
qos tcp-port ipv4 49 dscp 56
qos udp-port ipv4 69 dscp 56
sflow 1 destination 10.0.10.100
timesync ntp
no sntp
ntp unicast
ntp server 10.0.20.11
ntp server 10.0.20.12
ntp server 150.151.152.153
ntp server 154.155.156.157
ntp server 192.168.220.175
ntp server 192.168.220.176
ntp server 213.251.52.234
ntp enable
time daylight-time-rule western-europe
time timezone 60
no web-management
ip default-gateway 10.0.10.1
ip route 0.0.0.0 0.0.0.0 10.0.10.1
interface 1
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 2
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 3
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 4
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 5
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 6
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 7
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 8
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 9
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 10
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 11
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 12
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 13
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 14
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 15
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 16
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 17
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 18
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 19
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 20
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 21
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 22
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 23
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 24
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 25
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 26
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 27
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 28
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 29
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 30
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 31
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 32
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 33
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 34
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 35
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 36
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 37
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 38
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 39
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 40
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 41
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 42
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 43
   qos trust dot1p
   no bandwidth-min output
   rate-limit bcast in percent 3
   rate-limit mcast in percent 3
   exit
interface 47
   name "WiFi-Publica"
   exit
interface 48
   name "WiFi-INterna"
   exit
interface Trk1
   qos trust dscp
   exit
snmp-server community "public" unrestricted
no snmp-server enable traps link-change 1-24
snmpv3 enable
snmpv3 user "initial"
vlan 1
   name "DEFAULT_VLAN"
   no untagged 1-48
   untagged Trk1-Trk2
   no ip address
   exit
vlan 10
   name "Gestion_Ayuntamiento"
   tagged Trk1-Trk2
   ip address 10.0.10.216 255.255.255.0
   exit
vlan 21
   name "Telefonia_IP"
   tagged 1-35,Trk1-Trk2
   no ip address
   qos dscp ef
   exit
vlan 25
   name "WiFi-Publica"
   untagged 47
   tagged Trk1-Trk2
   no ip address
   exit
vlan 70
   name "Gestion_Telefonica"
   tagged Trk1-Trk2
   ip address 10.0.70.16 255.255.255.0
   exit
vlan 80
   name "Impresoras"
   untagged 36-43
   tagged Trk1-Trk2
   no ip address
   exit
vlan 90
   name "Videovigilancia"
   tagged Trk1-Trk2
   no ip address
   exit
vlan 200
   name "Gestion_Meraki"
   untagged 44-46
   tagged Trk1-Trk2
   no ip address
   exit
vlan 410
   name "Datos_Usuarios"
   untagged 1-35
   tagged Trk1-Trk2
   no ip address
   qos dscp 0
   exit
vlan 420
   name "WiFi_Usuarios"
   tagged 44-46,Trk1-Trk2
   no ip address
   exit
vlan 430
   name "WiFi_Invitados"
   tagged 44-46,Trk1-Trk2
   no ip address
   exit
vlan 3150
   name "WiFi-Interna"
   untagged 48
   tagged Trk1-Trk2
   no ip address
   exit
spanning-tree
spanning-tree 1 bpdu-protection
spanning-tree 2 bpdu-protection
spanning-tree 3 bpdu-protection
spanning-tree 4 bpdu-protection
spanning-tree 5 bpdu-protection
spanning-tree 6 bpdu-protection
spanning-tree 7 bpdu-protection
spanning-tree 8 bpdu-protection
spanning-tree 9 bpdu-protection
spanning-tree 10 bpdu-protection
spanning-tree 11 bpdu-protection
spanning-tree 12 bpdu-protection
spanning-tree 13 bpdu-protection
spanning-tree 14 bpdu-protection
spanning-tree 15 bpdu-protection
spanning-tree 16 bpdu-protection
spanning-tree 17 bpdu-protection
spanning-tree 18 bpdu-protection
spanning-tree 19 bpdu-protection
spanning-tree 20 bpdu-protection
spanning-tree 21 bpdu-protection
spanning-tree 22 bpdu-protection
spanning-tree 23 bpdu-protection
spanning-tree 24 bpdu-protection
spanning-tree 25 bpdu-protection
spanning-tree 26 bpdu-protection
spanning-tree 27 bpdu-protection
spanning-tree 28 bpdu-protection
spanning-tree 29 bpdu-protection
spanning-tree 30 bpdu-protection
spanning-tree 31 bpdu-protection
spanning-tree 32 bpdu-protection
spanning-tree 33 bpdu-protection
spanning-tree 34 bpdu-protection
spanning-tree 35 bpdu-protection
spanning-tree 36 bpdu-protection
spanning-tree 37 bpdu-protection
spanning-tree 38 bpdu-protection
spanning-tree 39 bpdu-protection
spanning-tree 40 bpdu-protection
spanning-tree 41 bpdu-protection
spanning-tree 42 bpdu-protection
spanning-tree 43 bpdu-protection
spanning-tree Trk1 priority 4
spanning-tree Trk2 priority 5
spanning-tree mode rapid-pvst
spanning-tree priority 6
no tftp server
no autorun
no dhcp config-file-update
no dhcp image-file-update
no dhcp tr69-acs-url
password manager

But is the port (52) UP between the 2 access switches right now? Because it seems it is not, from what i have seen.

So if that is the case and you disable LACP  on that port it will not have impact.

Hi (again),

The Port 52/ TRK2 is down 'cause is being blocked by the LACP.  You can see this on this LOG:

XXXXXXXXXX_2# sh log | i 52
I 09/17/18 12:12:02 00435 ports: port 52 is Blocked by LACP
I 09/17/18 12:12:02 00076 ports: port 52 in Trk2 is now on-line
I 09/17/18 12:12:03 00077 ports: port 52 in Trk2 is now off-line
I 09/17/18 12:12:16 00435 ports: port 52 is Blocked by LACP
I 09/17/18 12:12:17 00077 ports: port 52 in Trk2 is now off-line
I 09/17/18 12:12:42 00435 ports: port 52 is Blocked by LACP
I 09/17/18 12:12:42 00077 ports: port 52 in Trk2 is now off-line
I 09/17/18 12:15:32 00435 ports: port 52 is Blocked by LACP
I 09/17/18 12:15:32 00077 ports: port 52 in Trk2 is now off-line
I 09/17/18 12:26:21 00435 ports: port 52 is Blocked by LACP
I 09/17/18 12:26:21 00077 ports: port 52 in Trk2 is now off-line
I 09/17/18 12:29:25 00435 ports: port 52 is Blocked by LACP
I 09/17/18 12:29:26 00077 ports: port 52 in Trk2 is now off-line
I 09/17/18 12:34:09 00435 ports: port 52 is Blocked by LACP
I 09/17/18 12:34:09 00077 ports: port 52 in Trk2 is now off-line
I 09/17/18 12:41:07 00435 ports: port 52 is Blocked by LACP
I 09/17/18 12:41:07 00077 ports: port 52 in Trk2 is now off-line

Yes i know, so in my opinion when you disable LACP on that port it can only be better right?

I dont see a reason why you would lose the connection to your remote side. maybe a little STP topology change but that will be all.

But better safe then sorry, so it is always better to have someone on side  i guess :)

I'll try it on this afternoon.... MOde: Crossin' fingers :)

Thanks 4 your support buddy....

LACP is OUT but nothing has changed.... :(

The port is flapping but isn't blocked by the STP or something....  Should not it appear as BLOCKED?

Do you see errors on the port?

Show interface 52

Was my first check (**bleep**ing Monomode Fiber cable) but the answer is NO :'(

Same type of SFP in both sides.

Seems all OK to me. Don't know if you have spare switches available to see what happens when you connect a factory default switch on that port. Or you can also try to use another port.

But i am running out of ideas :) maybe somone else on this forum can help you out.

Thanks for all buddy!!! Your indications were very helpful.!!!

I'll open a case with the manufacturer or I'll pray ... (Although I'm afraid there will not be Option B because I'm not religious) :P

The traffic is nfs mounts for virtual machines, with a small possibility of iscsi.
