Replace Procurve 1800 1810 and 1820 By 2930F

This thread has been viewed 0 times

  • 1.  Replace Procurve 1800 1810 and 1820 By 2930F

    Posted Mar 05, 2021 09:18 AM

    Hello ,

    I will replace some Old procurve switches 1800 1810 and 1820 by 2930F switches.
    The old switches have only Web access (GUI interface). So I need to translate the Gui to CLI.

    Could you please confirm / correct if the translation bellow are goode (please see attached correspending GUI)?

    Thank you

    ********** Switch 1800 ***********

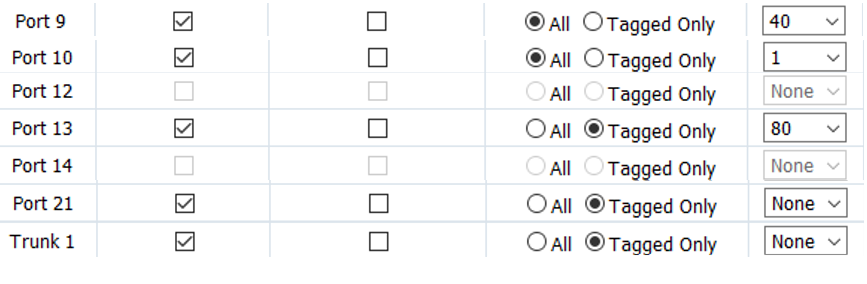

    Switch 1800.png
    int 9
    untagged 40
    !
    int 10
    untagged 1
    !
    int 13
    tagged 80
    !
    int 21
    tagged vlan 1,40,80
    !
    trunk 12,14 trk1 lacp
    interface trk1
    tagged vlan 1,40,80


    ************ Switch 1810 *******************

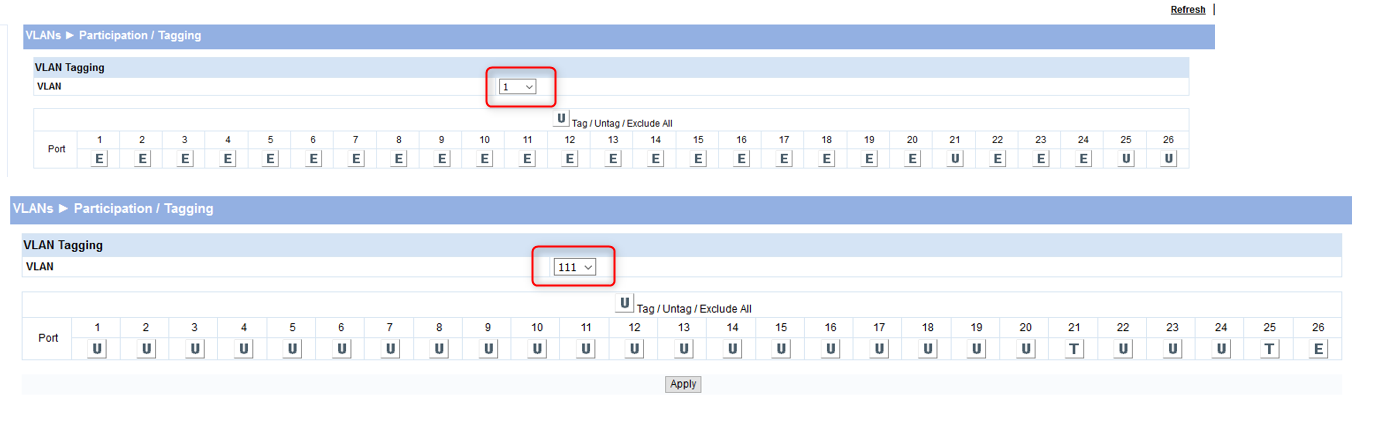

    Switch 1810.png
    int 1-20,22-24
    untagged 111
    !
    int 21,25
    untagged 1
    tagged 111
    !
    int 26
    untagged 1



    *********  Switch 1820******************

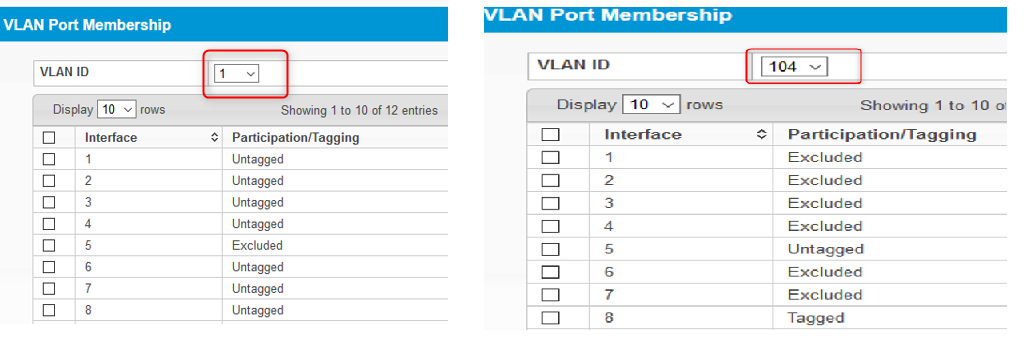

    Switch 1820.png
    int 1-4,6-7
    untagged 1
    !
    int 5
    untagged 104
    !
    int 8

    untagged 1
    tagged 8
    !



  • 2.  RE: Replace Procurve 1800 1810 and 1820 By 2930F

    Posted Mar 08, 2021 12:08 AM

    Hello,

    This looks good but it depends on your requirements.

    Seems all snapshots are not attached.

    If access port then it should be untagged and if trunk port then it should be tagged.

    Thanks!
