snmp trap (power supply event) not showing in trap browser

This thread has been viewed 0 times

  • 1.  snmp trap (power supply event) not showing in trap browser

    Posted Oct 13, 2016 06:19 AM

    Hello,

    We have a HP A7506 in our network and like to know if a power supply fail.

    We tried to turn off one of them.

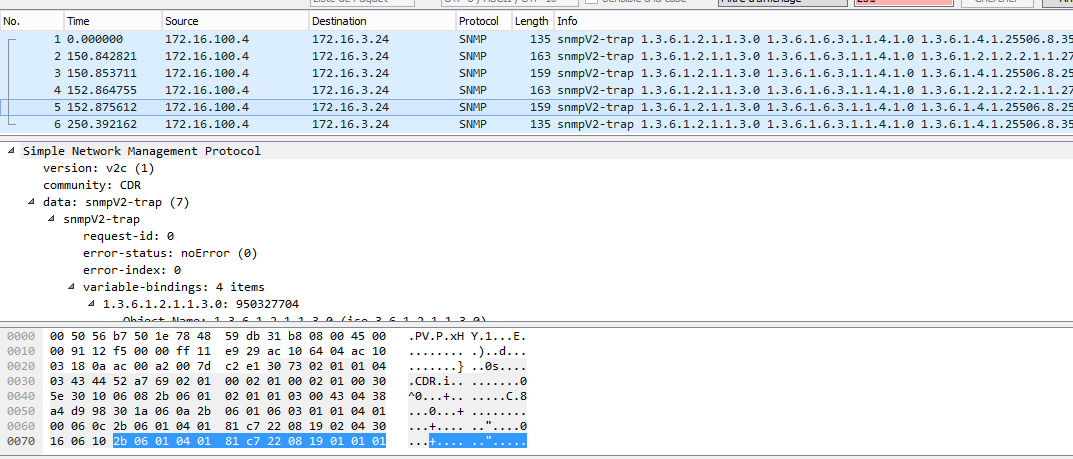

    We can see the trap with wireshark but nothing shows up in the trap browser. I already disabled the "unknown trap filter"


    Do I need to add a mib to see the trap in the interface ?



  • 2.  RE: snmp trap (power supply event) not showing in trap browser

    Posted Oct 16, 2016 11:03 AM

    Hi,

    Go to Alarm -> Trap Management -> Trap Definition.

    In the search window look for the trap OID: 1.3.6.1.4.1.25506.8.35.

    You should see a number of traps in relation with power supplies, temperature, etc, icluding yours.

    Ensure that the trap has a sverity enough to appear in your browser (indeed higher then INFO).

    If they are not there load the "H3C Ethernet Switch" trap MIB file (avaialble on HPE site)

    then;

    Go to Alarm -> Trap Management -> Trap to Alarm

    Ensure that the "H3C Ethernet Switch" is ENABLE with default rule.

    You might have another issue, but al least this is worth to check.

    Cheers

    Ray
