According to the literature from HP the J8177C transceiver is supported by the 2620 series and 2610 series switches. However this is not the case - I have tested this with different J8177C transceiver in these models and the transceiver does not come online. The switches I have tested with have the latest firmware installed. This is causing issues as we needed more 1GB copper ports on these switches, we thought this transceiver would be the ideal solution however it seems its not compatible. Does HP bother to test its own equipment before stating that its compatible?????

http://h20565.www2.hp.com/hpsc/doc/public/display?docId=emr_na-c02605318

There is a huge problem with counterfit transceivers in the wild. The US list price for that transceiver is $275. I would think if you got it for a significantly lower price, then you may have a counterfit product. I always recommend buying from reputible resellers / distributors.

These transcievers were purchased from an official UK HP Platinum partner. These are 100% genuine HP products.

Can you share the output of "show interfaces transceiver" and "show interfaces brief"?

HP-2620-24(config)# show interfaces transceiver

Transceiver Technical Information:

Product Serial Part
Port Type Number Number Number
------- ----------- ------------ ------------------ ----------
27 1000T-sfp J8177C US502HF03S 1990-3816

HP-2620-24(config)# show interfaces brief

Status and Counters - Port Status

| Intrusion MDI Flow Bcast
Port Type | Alert Enabled Status Mode Mode Ctrl Limit
----- ---------- + --------- ------- ------ ---------- ---- ---- -----
1 10/100TX | No Yes Down 10FDx MDI off 0
2 10/100TX | No Yes Down 10FDx MDI off 0
3 10/100TX | No Yes Down 10FDx MDIX off 0
4 10/100TX | No Yes Down 10FDx MDI off 0
5 10/100TX | No Yes Down 10FDx MDI off 0
6 10/100TX | No Yes Down 10FDx MDIX off 0
7 10/100TX | No Yes Down 10FDx MDIX off 0
8 10/100TX | No Yes Down 10FDx MDI off 0
9 10/100TX | No Yes Down 10FDx MDI off 0
10 10/100TX | No Yes Down 10FDx MDI off 0
11 10/100TX | No Yes Down 10FDx MDIX off 0
12 10/100TX | No Yes Down 10FDx MDI off 0
13 10/100TX | No Yes Down 10FDx MDIX off 0
14 10/100TX | No Yes Down 10FDx MDIX off 0
15 10/100TX | No Yes Down 10FDx MDI off 0
16 10/100TX | No Yes Down 10FDx MDIX off 0
17 10/100TX | No Yes Down 10FDx MDI off 0
18 10/100TX | No Yes Down 10FDx MDI off 0
19 10/100TX | No Yes Down 10FDx MDI off 0
20 10/100TX | No Yes Down 10FDx MDIX off 0
21 10/100TX | No Yes Down 10FDx MDIX off 0
22 10/100TX | No Yes Down 10FDx MDI off 0
23 10/100TX | No Yes Down 10FDx MDIX off 0
24 10/100TX | No Yes Down 10FDx MDIX off 0
25 100/1000T | No Yes Down 1000FDx MDI off 0
26 100/1000T | No Yes Down 1000FDx MDI off 0
27 1000T-SFP | No Yes Down 1000FDx NA off 0
28 | No Yes Down . off 0

HP-2620-24(config)#

According to the output, there is no link on any port including port 27. Is there a cable plugged into port 27? Does the log "log -r" indicate anything interesting? Those SFPs only link at Gig speeds except certain circumstances where it will link at 100Mb if configured to do so. Since nothing is connected to the switch a loop won't matter, try plugging a cable into the SFP on port 27 into port 25 or 26 and see if a link comes up (show interfaces brief or link lights). I assume it will. If it does, what happens when you connect port 27 to another gig capable device?

The output you see is while the port is plugged into another live port. There is nothing in the log. This has been tried with a 2620 and a 2610 x24 port switch and a 2610 x48 port switch, all on different ports and connecting to different live ports. Also different transceivers have been tried, they all do the same thing.

What is on the other end of the cable? Try plugging a cable from port 27 into port 26.

OK seems it works if you plug it into a gig capable device. That's fine then as we need to run gig wireless points from the ports. Seems the transceiver does not have the capability to run at 100 meg

Yes, it is designed to run at Gig. That said, on some devices you can force it to link at 100Mb by setting the speed on the interface to "auto-100" but I am not sure if that works on the 26xx series switches.

Just for future reference it looks like the 2610/2620s will not auto sense to 100 and also you can't manually set to 100 with the transceiver. Its a shame the literature isn't more clear about what circumstances it will actually work. Thanks for the assistance.

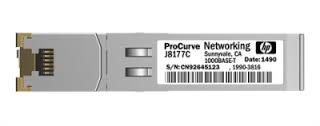

I think the "1000BASET-T" on the label is fairly clear.

You can get 100M transceivers that work in the Procurve:

I remember having to look for 100M copper transceivers last year, but I don't think I had any luck. I assumed at the time that nobody at HP had thought anybody would want to use the SFP port for a 100M connection when the switch already has a whole bunch of copper ports that can do the job, so I left it at that.
