  • 1.  Various models not respecting EIRP setting

    Posted Oct 10, 2023 02:20 PM

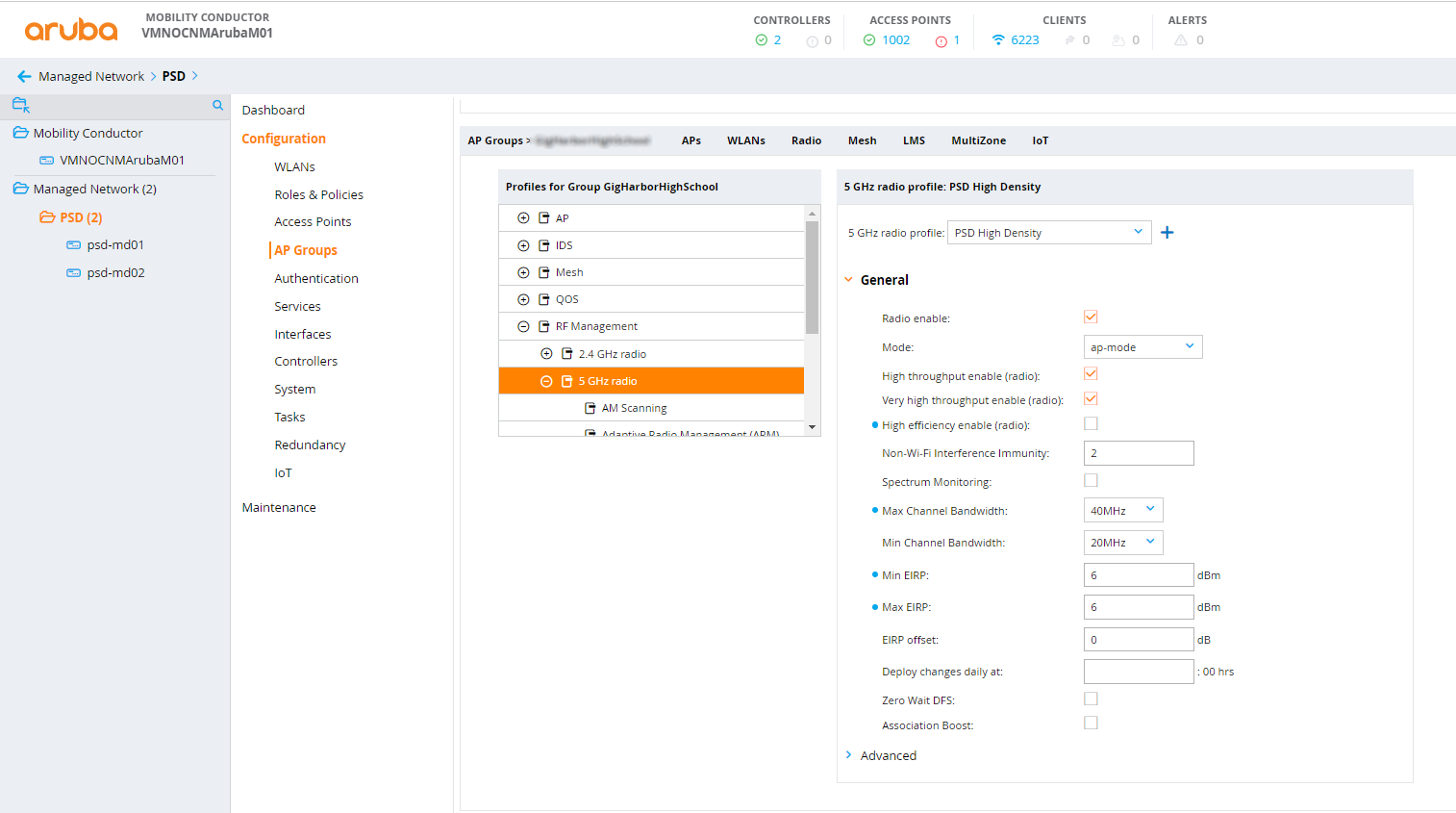

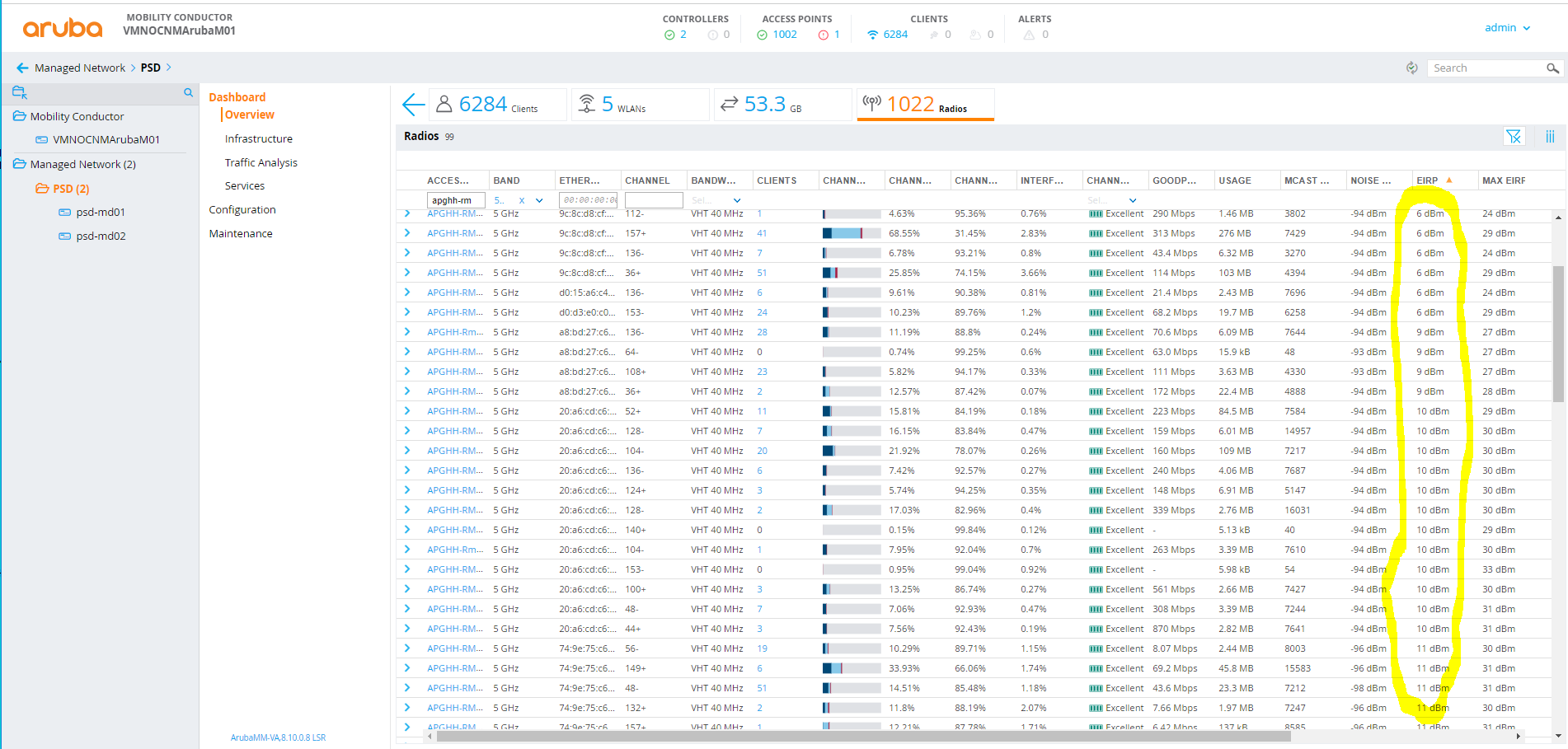

    I have a high school where the classrooms are stacked and the walls are thin.  I have tried to adjust the min and max EIRP settings way down to keep the CCI to a minimum.  When I do a survey in these rooms, I can still see 20-30 other APs broadcasting.  I set the Min and Max EIRP to 6 but only my 555s are respecting that.  Other AP models  (315, 335, 515) are broadcasting at 9, 10, and 11.  What am I missing here?



    ------------------------------
    -Bill
    ------------------------------


  • 2.  RE: Various models not respecting EIRP setting

    Posted Oct 10, 2023 04:53 PM

    Please see comment 6 in the thread here:  https://community.arubanetworks.com/discussion/minimum-transmit-power-of-ap-114



    ------------------------------
    Any opinions expressed here are solely my own and not necessarily that of Hewlett Packard Enterprise or Aruba Networks.

    HPE Design and Deploy Guides: https://community.arubanetworks.com/support/migrated-knowledge-base?attachments=&communitykey=dcc83c62-1a3a-4dd8-94dc-92968ea6fff1&pageindex=0&pagesize=12&search=&sort=most_recent&viewtype=card
    ------------------------------

    Original Message


  • 3.  RE: Various models not respecting EIRP setting

    Posted Oct 10, 2023 08:40 PM

    Note that some AP models now have a minimum radio transmit power of -10 dBm, the AP-555 being one of them.  And since 2017 we factor the MIMO gain (~3 dBi for 2x2, ~6 dBi for 4x4, ~9 dBi for 8x8) into the conducted power.



    ------------------------------
    Carson Hulcher, ACEX#110
    ------------------------------

    Original Message
