Wireless Access

 View Only

  • 1.  VisualRF + Aruba 755 Access point

    Posted Jul 10, 2025 08:53 PM

    Hi

    I am using Airwave 8.3.05 on hyperv. Trying to add Aruba 730 Series and 750 series AP in planned mode for designing new wifi network. I am not able to find these. How do i update the list

    Thanks in advance for the help. my root access and grub are locked



  • 2.  RE: VisualRF + Aruba 755 Access point

    Posted Jul 10, 2025 09:16 PM

    AP-730 and AP-755 use AOS-10 which required Aruba Central and Airwave does not support AOS10. You should be able to check Airwave supported device/OS matrix and you'll find that AP-730s and 750s are not listed.



    ------------------------------
    If my post was useful accept solution and/or give kudos.
    Any opinions expressed here are solely my own and not necessarily that of HPE or Aruba.
    ------------------------------

    Original Message


  • 3.  RE: VisualRF + Aruba 755 Access point

    Posted Jul 14, 2025 02:13 AM

    Hi Thanks for the reply. What option do we have to create heatmap and design new  wifi network using 735 and 755 APs.

    Thanks in advance


    Original Message


  • 4.  RE: VisualRF + Aruba 755 Access point

    Posted Jul 14, 2025 02:48 AM

    if you were planning to use Airwave's visual RF for a predictive heat map, you can still use it but use AP-635 and  AP-655 instead, to get the feel for it.

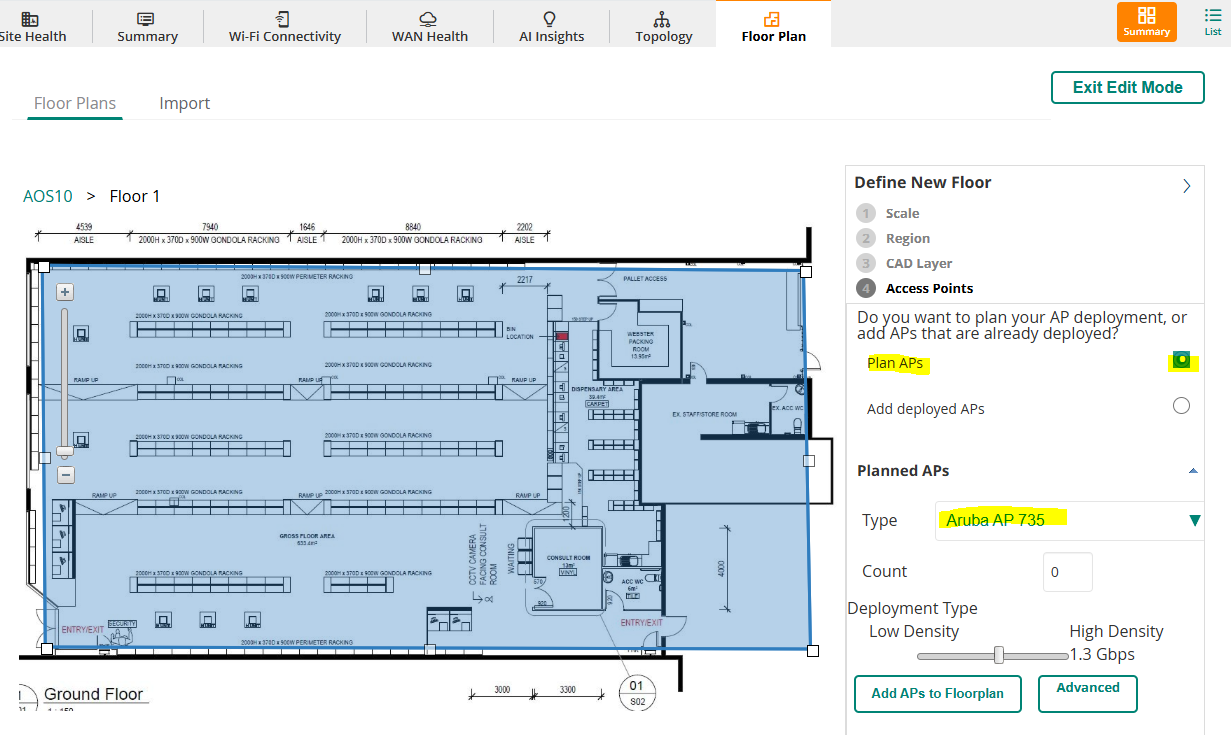

    or you can use VisualRF in Aruba Central to see the predictive heatmap.

    https://arubanetworking.hpe.com/techdocs/central/2.5.8/content/nms/monitoring-network/wi-fi-conn/planning-provisioning-devices-create.htm



    ------------------------------
    If my post was useful accept solution and/or give kudos.
    Any opinions expressed here are solely my own and not necessarily that of HPE or Aruba.
    ------------------------------

    Original Message


  • 5.  RE: VisualRF + Aruba 755 Access point

    Posted Jul 14, 2025 02:51 AM
    Edited by Herman Robers Jul 14, 2025 04:30 AM

    [crossed with the post above; think content is mostly in a similar line]

    I believe most customers that do RF planning on a regular bases use a dedicated/specialized planning tool like Ekahau/Hamina/Airmagnet.

    You can also use the RF planner that is part of HPE Aruba Networking Central, start an evaluation if you don't have an account yet. Or if you insist on using Airwave (not recommended), use the 635 and 655 to plan with and hope that coverage is similar enough between those models.



    ------------------------------
    Herman Robers
    ------------------------
    If you have urgent issues, always contact your HPE Aruba Networking partner, distributor, or Aruba TAC Support. Check https://www.arubanetworks.com/support-services/contact-support/ for how to contact HPE Aruba Networking TAC. Any opinions expressed here are solely my own and not necessarily that of Hewlett Packard Enterprise or HPE Aruba Networking.

    In case your problem is solved, please invest the time to post a follow-up with the information on how you solved it. Others can benefit from that.
    ------------------------------

    Original Message
