Controllerless Networks

 View Only

  • 1.  VRRP not working

    Posted Aug 02, 2023 11:03 AM

    Hello All,

    I have a couple of questions, VRRP is configured on Aruba 7210 WLCs, when I rebooted the primary conductor for a smooth failover but the backup conductor didn't came up as a master role,
    I have connected the primary one on Fiber connection to CORE Sw however the standby has just a 1G connection to CORE.
    what is the issue of VRRP not working? I send the tech support file to Aruba support they quoted that the VRRP ain't configured.
    Is the connection links make problem for that?



  • 2.  RE: VRRP not working

    Posted Aug 05, 2023 02:00 AM

    is this resolved? the link speed should not have any bearings on VRRP operation, but for sure we always recommend to have the same link speed and type for any form of redundancy.

    Also what firmware version are you using?



    ------------------------------
    If my post was useful accept solution and/or give kudos.
    Any opinions expressed here are solely my own and not necessarily that of HPE or Aruba.
    ------------------------------

    Original Message


  • 3.  RE: VRRP not working

    Posted Aug 05, 2023 03:59 AM

    No it is not resolved yet,
    both WLCs have an identical firmware which is 8.10.0.7_87023 (LSR)


    Original Message


  • 4.  RE: VRRP not working

    Posted Aug 07, 2023 05:22 AM

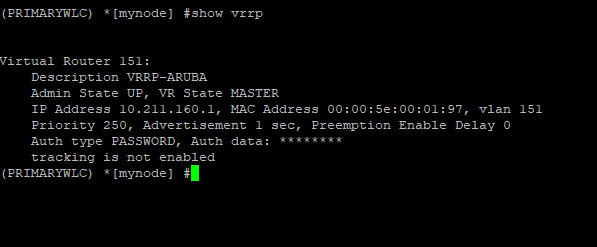

    Can you check from the CLI the VRRP status on both controllers?

    (MM01) [mynode] #show vrrp


Virtual Router 10:
    Description
    Admin State UP, VR State MASTER
    IP Address 192.168.31.10, MAC Address 00:00:5e:00:01:0a, vlan 31
    Priority 110, Advertisement 1 sec, Preemption Enable Delay 30
    Auth type PASSWORD, Auth data: ********
    tracking is not enabled

(MM02) [mynode] #show vrrp


Virtual Router 10:
    Description
    Admin State UP, VR State BACKUP
    IP Address 192.168.31.10, MAC Address 00:00:5e:00:01:0a, vlan 31
    Priority 100, Advertisement 1 sec, Preemption Enable Delay 30
    Auth type PASSWORD, Auth data: ********
    tracking is not enabled


    ------------------------------
    Herman Robers
    ------------------------
    If you have urgent issues, always contact your Aruba partner, distributor, or Aruba TAC Support. Check https://www.arubanetworks.com/support-services/contact-support/ for how to contact Aruba TAC. Any opinions expressed here are solely my own and not necessarily that of Hewlett Packard Enterprise or Aruba Networks.

    In case your problem is solved, please invest the time to post a follow-up with the information on how you solved it. Others can benefit from that.
    ------------------------------

    Original Message


  • 5.  RE: VRRP not working

    Posted Aug 09, 2023 01:42 AM


    Original Message


  • 6.  RE: VRRP not working

    Posted Aug 09, 2023 01:43 AM

    can I config a new vrrp instace while keeping the old one?


    Original Message


  • 7.  RE: VRRP not working

    Posted Aug 09, 2023 05:11 AM

    Yes.

    But the quote from TAC that VRRP is not configured seem false as you have a working VRRP. Did you link the VRRP to the Master/Conductor Redundancy? I found a video here (external, non-Aruba) on how to set this up without MM/Mobility Conductor. Maybe that helps...



    ------------------------------
    Herman Robers
    ------------------------
    If you have urgent issues, always contact your Aruba partner, distributor, or Aruba TAC Support. Check https://www.arubanetworks.com/support-services/contact-support/ for how to contact Aruba TAC. Any opinions expressed here are solely my own and not necessarily that of Hewlett Packard Enterprise or Aruba Networks.

    In case your problem is solved, please invest the time to post a follow-up with the information on how you solved it. Others can benefit from that.
    ------------------------------

    Original Message


  • 8.  RE: VRRP not working

    Posted Aug 09, 2023 10:09 AM


    Original Message
