Hi,

Got an annoying issue with windows 10/11  using cert based machine auth.

These ar doman joined clients configued via GPO push which installs a client cert that is used for wired/wifi connectivity. It all works just fine and cppm set up to say

If Windows 10/11 and machine auth using  issued cert then pass friend

else

drop device into captive portal.

THis all works just fine. However its a pain. that an idle machine or one at a login prompt doesnt do cert based auth as you can see a client machi. flipping between  cert auth and bein droped into the captive portal.

I'm not involved in the windows setup, but is there anyting that can be set ( in win 11 now) that ensures  cert based machine auth is always used irrespective of whether the system is at idle or with user logged in?

Rgds

Alex

-------------------------------------------

From my point of view it sounds very strange to have a captive portal involved with any certificate based 802.1x.

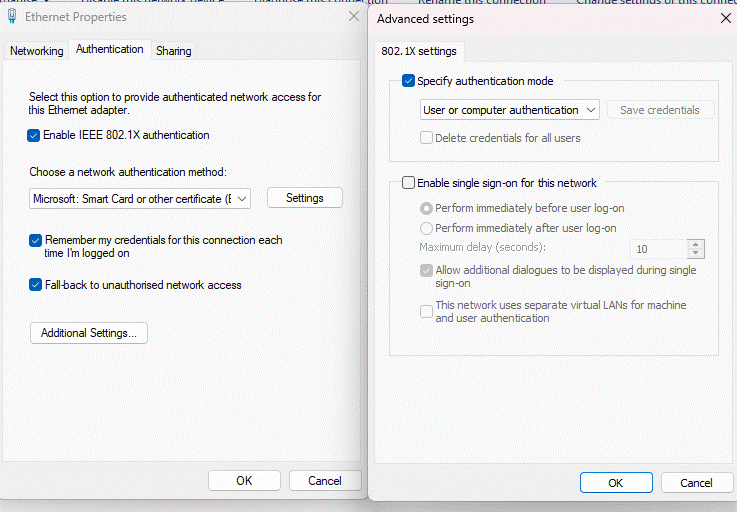

In the GPO, configure the clients to do EPA-TLS with both machine and user authentication. This is done under the Additional settings button if EAP-TLS is selected as authentication method.

Another option is to migrate to use EAP-TEAP instead, but this is a bigger work as also ClearPass must be reconfigured to support TEAP.

------------------------------
Best Regards
Jonas Hammarbäck
MVP Guru, ACEX, ACDX #1600, ACCX #1335, ACX-Network Security
Aranya AB
If you find my answer useful, consider giving kudos and/or mark as solution
------------------------------
