  • 1.  DHCP server issue on Aruba Gateway 9012

    Posted Sep 14, 2025 07:40 AM

    Hello, I'm facing a rather annoying issue on Aruba Gateway 9012.
    I have configured a DHCP server on the VLAN, but sometimes the client device receives an IP address and sometimes it doesn't.

    I checked the network logs and DHCP-related logs (included below), and it seems the DHCP server service might be having problems.
    Could this issue be related to the firmware version? I noticed the device is running an old firmware: ArubaOS (MODEL: Aruba9012), Version 8.7.0.0-2.3.0.8.

    Please help me check this issue. Thank you all!


    show log network all:
    Sep 12 18:18:10 2025  dhcpd[8108]: <299801> <8108> <DBUG> |dhcpd|  DHCPDISCOVER from a0:29:19:d0:92:cc via eth1

    Sep 12 18:18:11 2025  dhcpd[8108]: <299801> <8108> <DBUG> |dhcpd|  DHCPOFFER on 10.160.158.5 to a0:29:19:d0:92:cc (VN339-74069K3) via eth1

    Sep 12 18:18:32 2025  dhcpd[8108]: <299801> <8108> <DBUG> |dhcpd|  DHCPDISCOVER from c0:47:0e:2b:b5:91 (VN339-1Z6BY74) via eth1

    Sep 12 18:18:33 2025  dhcpd[8108]: <299801> <8108> <DBUG> |dhcpd|  DHCPOFFER on 10.160.158.4 to c0:47:0e:2b:b5:91 (VN339-1Z6BY74) via eth1

    show log all | include dhcp:

    Sep 12 18:00:05 2025  publisher[6340]: <306510> <6340> <WARN> |publisher|  Dropping message from 8359 for service 'dhcpd config status (service not found)'

    Sep 12 18:00:08 2025  pim[6408]: <204290> <6408> <ERRS> |pim|  Received CPFW port info: Could not allocate bw contract cpbwc-ipv4-dhcp-sync

    Sep 12 18:02:16 2025  dhcpdwrap[6604]: <399816> <6604> <ERRS> |dhcpdwrap|  timer_chldcheck: DHCP Server received signal 9

    Sep 12 18:02:16 2025  dhcpdwrap[6604]: <399816> <6604> <ERRS> |dhcpdwrap|  timer_chldcheck: DHCP Server received signal 9

    Sep 12 18:02:18 2025  dhcpd[7832]: Vlan 110 entry already present

    Sep 12 18:02:18 2025  dhcpd[7832]: Vlan 60 entry already present

    Sep 12 18:02:18 2025  dhcpd[7832]: Vlan 1001 entry already present

    Sep 12 18:02:36 2025  dhcpdwrap[6604]: <399816> <6604> <ERRS> |dhcpdwrap|  timer_chldcheck: DHCP Server received signal 9

    Sep 12 18:04:04 2025  dhcpd[8108]: <299801> <8108> <DBUG> |dhcpd|  DHCPDISCOVER from c0:47:0e:2b:b5:91 via eth1

    Sep 12 18:04:05 2025  dhcpd[8108]: <299801> <8108> <DBUG> |dhcpd|  DHCPOFFER on 10.160.158.4 to c0:47:0e:2b:b5:91 (VN339-1Z6BY74) via eth1

    Sep 12 18:15:02 2025  httpd[8077]: <399823> <8093> <DBUG> |httpd| |webserver|  exec_configuration 185: Config handler initiated for URI /v1/configuration/container/dhcp_server?config_path=/mm/mynode&covert_op=fill_create&covert_op=fill_create&type=meta-n-data&filter [%7B%22OBJECT%22%3A%7B%22%24eq%22%3A%5B%22ip_dhcp_pool_cfg%22%2C%22ip_dhcp_pool_cfg.ip_dhcp_pool_cfg__net%22%5D%7D%7D

    Sep 12 18:15:02 2025  httpd[8077]: <399823> <8093> <DBUG> |httpd| |webserver| URI is get_api&container=dhcp_server&config_path=/mm/mynode&covert_op=fill_create&covert_op=fill_create&type=meta-n-data&filter=[%7B%22OBJECT%22%3A%7B%22%24eq%22%3A%5B%22ip_dhcp_pool_cfg%22%2C%22ip_dhcp_pool_cfg.ip_dhcp_pool_cfg__net%22%5D%7D%7D

    Sep 12 18:15:03 2025  httpd[8077]: <399823> <8082> <DBUG> |httpd| |webserver|  exec_configuration 185: Config handler initiated for URI /v1/configuration/container/dhcp_server?config_path=/mm/mynode&covert_op=fill_create&covert_op=fill_create&type=meta-n-data&filter=[%7B%22OBJECT%22%3A%7B%22%24eq%22%3A%5B%22ip_dhcp_pool_cfg%22%2C%22ip_dhcp_pool_cfg.ip_dhcp_pool_cfg__net%22%5D%7D%7D

    Sep 12 18:15:03 2025  httpd[8077]: <399823> <8082> <DBUG> |httpd| |webserver| URI is get_api&container=dhcp_server&config_path=/mm/mynode&covert_op=fill_create&covert_op=fill_create&type=meta-n-data&filter=[%7B%22OBJECT%22%3A%7B%22%24eq%22%3A%5B%22ip_dhcp_pool_cfg%22%2C%22ip_dhcp_pool_cfg.ip_dhcp_pool_cfg__net%22%5D%7D%7D

    Sep 12 18:15:04 2025  httpd[8077]: <399823> <8098> <DBUG> |httpd| |webserver|  exec_configuration 185: Config handler initiated for URI /v1/configuration/container/dhcp_server?config_path=/mm/mynode&covert_op=fill_create&covert_op=fill_create&type=meta-n-data&filter=[%7B%22OBJECT%22%3A%7B%22%24eq%22%3A%5B%22ip_dhcp_pool_cfg%22%2C%22ip_dhcp_pool_cfg.ip_dhcp_pool_cfg__net%22%5D%7D%7D



    -------------------------------------------


  • 2.  RE: DHCP server issue on Aruba Gateway 9012

    Posted Sep 15, 2025 01:13 AM

    You are running on an old Aruba OS and i would recommend you to upgrade it to the latest recommended one.

    In Addition:

    dhcpdwrap ... DHCP Server received signal 9 → the DHCP process was hard-killed (SIGKILL) by the watchdog. That will drop offers/acks mid-flow and cause intermittent failures.

    publisher ... 'dhcpd config status (service not found)' → the publisher tried to talk to the DHCP service while it wasn't up yet (between crashes/restarts).

    pim ... Could not allocate bw contract cpbwc-ipv4-dhcp-sync → control-plane bandwidth contract could not be reserved for DHCP sync. That's another sign the process/resources around DHCP weren't healthy.

    Vlan <id> entry already present right after a crash → duplicate/dirty state in the DHCP/VLAN mapping table after the restart.

    You should check if DHCP Service isn't flapping and also if potentially you might have a DHCP Pool exhaustion.



    ------------------------------
    Shpat | ACEP | ACMP | ACCP | ACDP
    Just an Aruba enthusiast and contributor by cases
    If you find my comment helpful, KUDOS are appreciated.
    ------------------------------



  • 3.  RE: DHCP server issue on Aruba Gateway 9012

    Posted Sep 15, 2025 02:58 AM

    DHCP service is enabled and DHCP pool has many IP addresses available, but it is unstable sometimes client is granted DHCP, sometimes no response. I have upgraded firmware to 8.12.6 but still have such log messages.

    -------------------------------------------

    Original Message


  • 4.  RE: DHCP server issue on Aruba Gateway 9012

    Posted Sep 15, 2025 03:21 AM

    Is the Gateway running standalone or in a cluster?
    Is the DHCP service bound to the correct VLAN interfaces only (no overlapping)?

    Check:
    show ip dhcp pool

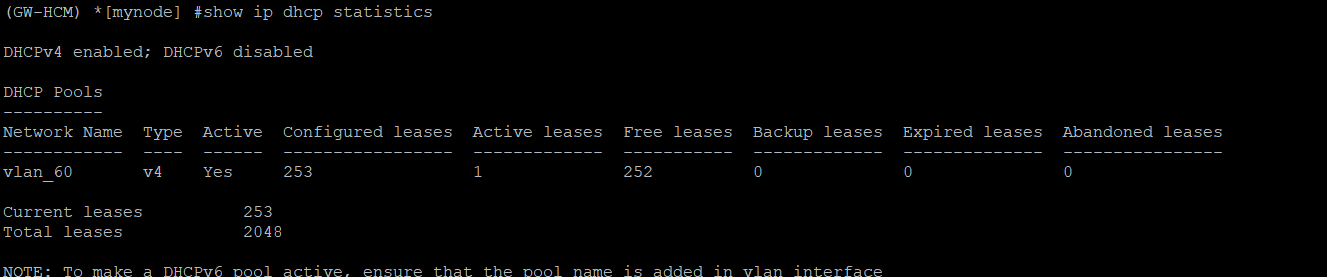

    show ip dhcp statistics
    show ip dhcp binding
    show processes application | include dhcp
    show processes top
    show memory




    ------------------------------
    Shpat | ACEP | ACMP | ACCP | ACDP
    Just an Aruba enthusiast and contributor by cases
    If you find my comment helpful, KUDOS are appreciated.
    ------------------------------

    Original Message
