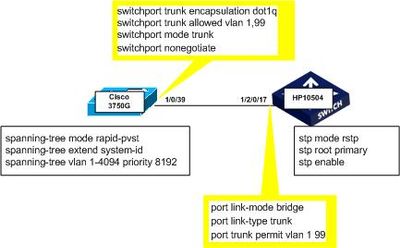

On a site, I changed the Campus Core with an HP 10504.  Many Cisco switches are still connected on the HP (some in daisy-chaining).

RPVST+ is configured on Cisco and RSTP on HP.
RPVST+ is per-vlan and RSTP is per-instance.  Seems to be compatible but not sure.

I was wondering how the spanning-tree protocol deals with such a change.

[HP]dis stp root
 MSTID  Root Bridge ID                    ExtPathCost IntPathCost Root Port
   0        4096.b8af-6763-e67e   0                      0

HP is the root bridge for instance 0 (including vlan 1, 99). That's perfect

BUT.....on Cisco, the command "show spanning-tree vlan root' shows that the CISCO switch is the root bridge  for vlan 99 except vlan 1.

CISCO#show spanning-tree root

                                        Root    Hello Max Fwd
Vlan                                    Root ID                     Cost       Time  Age Dly  Root Port
----------------     --------------------           ---------    ----- --- ---  ------------
VLAN0001          4096 b8af.6763.e67e             4          2   20  15  Gi1/0/39
VLAN0099          8194 0025.8383.3400          0          2   20  15

Neither, the HP switch can become the Root Bridge for vlan 99.

Any idea ???  Should I migrate to PVST on HP ?

Herve

--------------

Another test on HP:

[HP] dis stp vlan 99

Error: Invalid STP Mode

[HP] dis stp vlan1

Error: Invalid STP Mode

Hi,

The HP comware switches (including the 105xx) support pvst, but not pvst+, so for failover times, it is probably best to stick with MSTP/RSTP on the HP side.

This is a doc about xSTP-PVST interop (based on procurve, but the logic applies to any vendor, including comware):

http://h10032.www1.hp.com/ctg/Manual/c02571903.pdf

Bottomline: Cisco will run standard STP on vlan 1 (native vlan), so this is the only one which will interact with the HP switches, HP switch will see the PVST packets as normal data packets in the user vlans.

Best regards,Peter.

Dear team,

I also have an issue with STP between HP and Cisco Switches.
On the CISCO Switch I am running PVSTP.

Does anybody know if HP switch 1810-24G J9803A supports PVSTP?

Many thanks

Oliver

Hi!

"Does anybody know if HP switch 1810-24G J9803A supports PVSTP?"

No, it doesn't. You HP 1810 doesn't support PVSTP implementation.

HP ProCurve 1810 Switch Series supports:

• IEEE 802.1D Spanning Tree Protocol (STP)
• IEEE 802.1W Rapid Spanning Tree Protocol (RSTP)

P.S.

Don't post on a 7 (Seven!) years old thread...not only because it's old but also because this thread was focused on STP interoperability between HP Comware OS based switches (your HP 1810 isn't Comware based) and Cisco. Better for you to open a whole new thread on the Switching and Routing -> Forum "Aruba and ProVision based" section and explain what is your scenario and your issue.
