Hello!

Have you tried the interface profile API? You would want to create it as a local profile on the device to override any shared profile configurations. With that API you can designate a switch port profile to associate to the port you want to change. In this case you would want to create a switch port profile for your exception needs. If you haven't worked with local profiles before we have a guide on our Developer Hub to reference. Let me know if this works for you. If not feel free to drop some extra information about what you've tried and I can try to help troubleshoot!

Cheers,

Collin

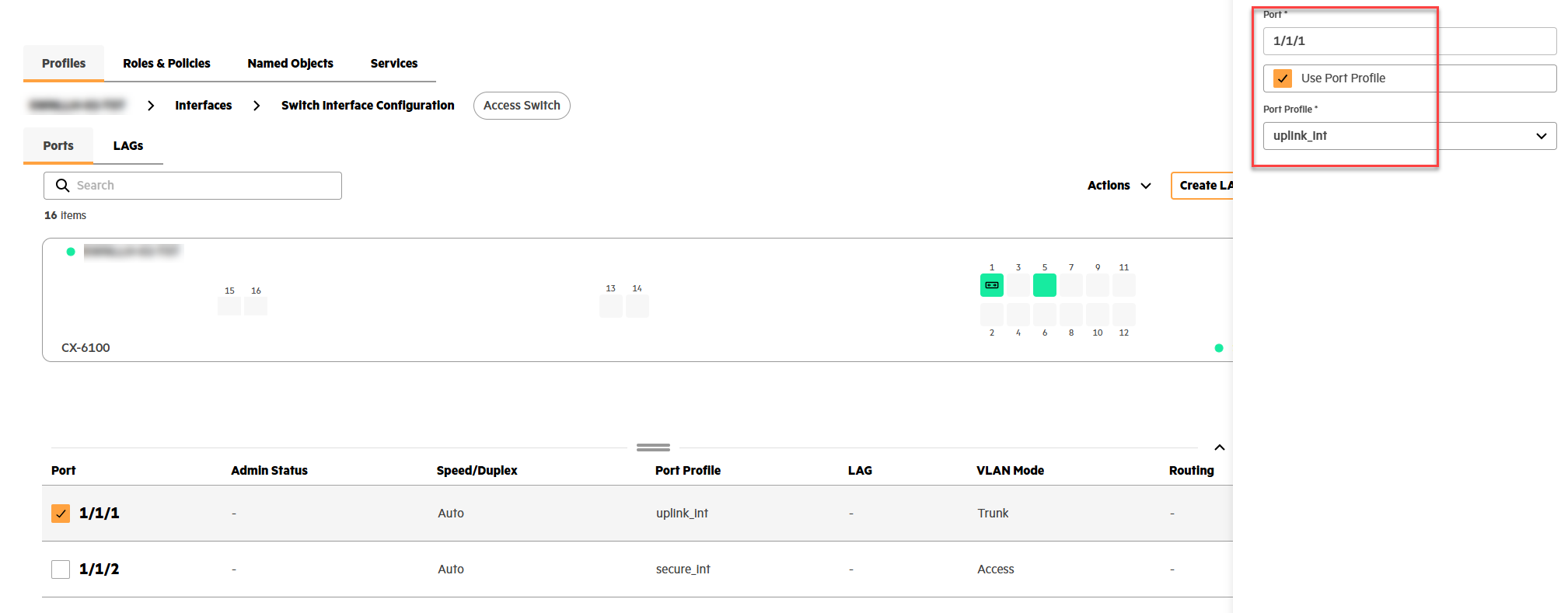

My issue is that I want to use API to set this on one switch, not the whole site. Every 1/1/1 port under this site cannot be used with this profile.

If I check the API guides for interface profile, it only shows me the profiles that I have in library.

The PATCH/POST under Interface Profile, I'm able to change the Profile, but not able to apply an predefined Interface Profile to an specific port on one switch.

Hi,

The API to use here is: https://developer.arubanetworks.com/new-central-config/reference/updateethernetinterfacesinterfacebyid

The Port Profiles are (in most cases) defined in the Library. To assign a port profile you need to change the interface at Device Level. For this you need some information to update this via the API:

• object-type: LOCAL
• scope-id: device ID > can be fetched via the API > https://developer.arubanetworks.com/new-central/docs/how-to-get-scope-ids
• device-function: ACCESS_SWITCH > if it has the Access Switch device function

Hereby an example to push the port profile at device level.

URI:{api-gw}/network-config/v1alpha1/ethernet-interfaces/:name?object-type=LOCAL&scope-id=123456789&device-function=ACCESS_SWITCHbody:{  "name": "1/1/9",  "sw-profile": "switches-collorlessport-CNAC"}

------------------------------
Willem Bargeman
Systems Engineer Aruba
ACEX #125
------------------------------


Original Message:
Sent: May 22, 2026 06:30 AM
From: AA92
Subject: Use API to set port profile on switch interface

My issue is that I want to use API to set this on one switch, not the whole site. Every 1/1/1 port under this site cannot be used with this profile.

If I check the API guides for interface profile, it only shows me the profiles that I have in library.

The PATCH/POST under Interface Profile, I'm able to change the Profile, but not able to apply an predefined Interface Profile to an specific port on one switch.

Original Message:
Sent: May 21, 2026 08:25 PM
From: Collin.Koss
Subject: Use API to set port profile on switch interface

Hello!

Have you tried the interface profile API? You would want to create it as a local profile on the device to override any shared profile configurations. With that API you can designate a switch port profile to associate to the port you want to change. In this case you would want to create a switch port profile for your exception needs. If you haven't worked with local profiles before we have a guide on our Developer Hub to reference. Let me know if this works for you. If not feel free to drop some extra information about what you've tried and I can try to help troubleshoot!

Cheers,

Collin

I tried this out and it worked for me, but only for a device level port profile. The API would error out when naming a library level port profile. @AA92 Give this a shot and let us know. Thanks Willem.

-------------------------------------------
